Coolant lines for BMW 3 Series E91 LCI 335d (2011)

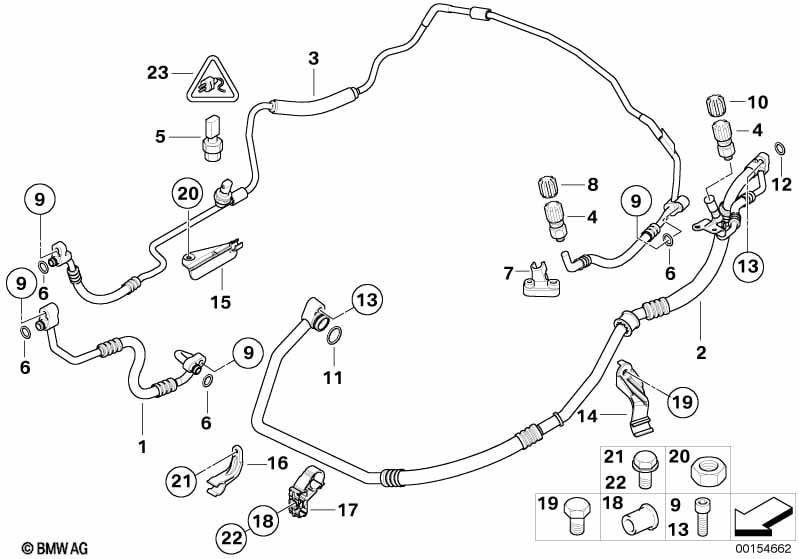

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64509145002 | $112.37 | Shop at ECS Tuning | |||||
| 02 | Suction pipe evaporator-compressor | 1 | 06/2008 | 64509209714 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket for air conditioning line | 1 | 06/2008 | 64536964967 | $1.73 | Shop at ECS Tuning | ||||
| 03 | Pressure hose,condenser,evaporator | 1 | 09/2010 | 64509209730 | Shop at ECS Tuning | |||||
| 04 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 05 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 06 | Gasket ring | D=10,8 MM | 4 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 07 | Pressure hose bracket | 1 | 64536980664 | Shop at ECS Tuning | ||||||
| 08 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M6X8-A2-70 | 4 | 07119903399 | $0.84 | Shop at ECS Tuning | ||||
| 10 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | D=23 MM | 1 | 64508363041 | $1.22 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 13 | ISA screw | M8X25-10.9-ZNS3 | 2 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 14 | Bracket suction pipe airconditioner | 1 | 64509117340 | Shop at ECS Tuning | ||||||
| 15 | Pressure hose bracket | 1 | 64509113786 | Shop at ECS Tuning | ||||||
| 16 | Bracket suction pipe airconditioner | 1 | 64536976792 | $8.89 | Shop at ECS Tuning | |||||
| 17 | Bracket suction pipe airconditioner | 1 | 64536976793 | Shop at ECS Tuning | ||||||
| 18 | Spacer sleeve | D6 | 1 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M10X18-8.8-ZNS3 | 1 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 20 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M6X12-U1 | 1 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
| 22 | Hex bolt with washer | M6X35-U2-8.8 | 1 | 07119903001 | $0.53 | Shop at ECS Tuning | ||||
