RP A/C compressor for BMW 3 Series E90 335d (2008)

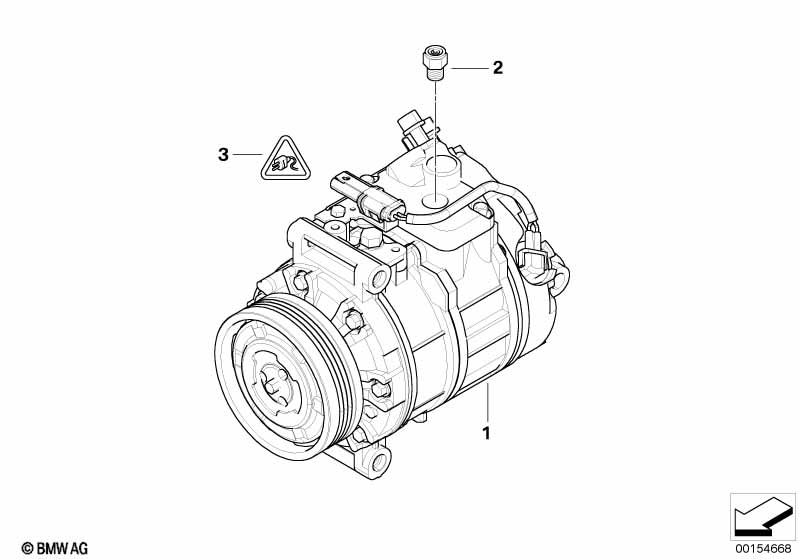

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with CO2 package |
S1CBA=No |
|||||||||
| 01 | Air conditioning compressor | 1 | 64509180548 | $1174.35 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 01 | Air conditioning compressor | 1 | 64509180547 | Shop at ECS Tuning | ||||||
| 02 | Relief valve | 1 | 64526910463 | $57.10 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 335d RP A/C compressor?
- This technical diagram illustrates the RP A/C compressor within the Heater and Air Conditioning group for the 3 Series E90 335d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Air conditioning compressor (Part #64509180548).
- Which models use the hardware listed in this RP A/C compressor?
- The hardware and components featured in the RP A/C compressor are specific to the 3 Series E90 335d produced during 2008. These technical specifications ensure that parts like the Air conditioning compressor (64509180548) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the RP A/C compressor assembly?
- Each item in the RP A/C compressor corresponds to the numbered list below the illustration. For the 3 Series E90 335d, you can identify the Air conditioning compressor by locating its position on the schematic, which then links to the official BMW part number 64509180548 for the Heater and Air Conditioning section.
