Additional water pump/Water hose for BMW 1 Series E81 120d (2011)

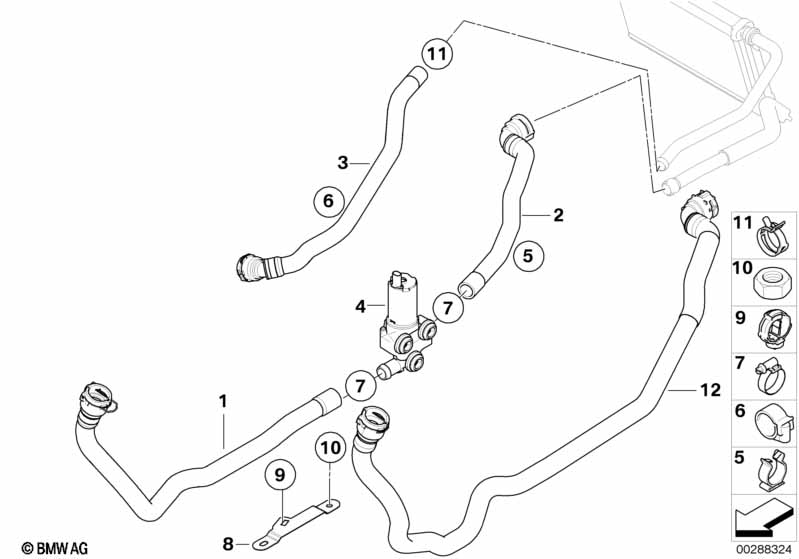

This Additional water pump/Water hose technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 03 | Hose f radiator and engine return | 1 | 64219129594 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | 1 | 64216921540 | $0.62 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 1 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Metal bracket | 1 | 64219127791 | Shop at ECS Tuning | ||||||
| 09 | Pipe support | 1 | 11721432400 | $0.78 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 12 | Hose f engine inlet and heater radiator | 1 | 12/2009 | 64219222699 | Shop at ECS Tuning | |||||
| For vehicles with Active steering Delete aux. water pump |
S217A=Yes |
|||||||||
| 12 | Hose f engine inlet and heater radiator | 1 | 02/2010 | 64219230247 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
