RP A/C compressor for BMW 1 Series E87 LCI 123d (2011)

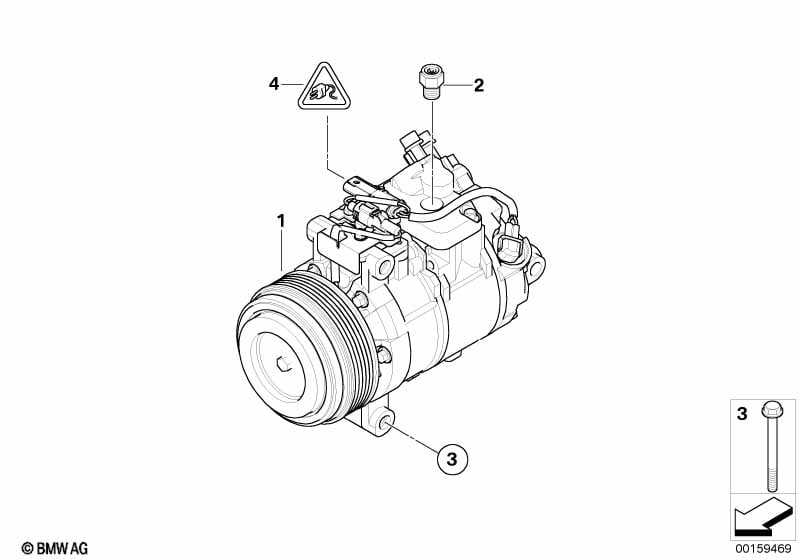

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air cond.compressor w/ magnetic coupling | 1 | 64526987862 | Shop at ECS Tuning | ||||||
| 01 | Air cond.compressor w/ magnetic coupling | 1 | 09/2008 | 64526987862 | Shop at ECS Tuning | |||||
| 02 | Relief valve | 1 | 64526910463 | $57.10 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X85-U1-8.8 | 3 | 07119906141 | $1.89 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 123d RP A/C compressor?
- This technical diagram illustrates the RP A/C compressor within the Heater and Air Conditioning group for the 1 Series E87 LCI 123d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Air cond.compressor w/ magnetic coupling (Part #64526987862).
- Which models use the hardware listed in this RP A/C compressor?
- The hardware and components featured in the RP A/C compressor are specific to the 1 Series E87 LCI 123d produced during 2011. These technical specifications ensure that parts like the Air cond.compressor w/ magnetic coupling (64526987862) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the RP A/C compressor assembly?
- Each item in the RP A/C compressor corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 123d, you can identify the Air cond.compressor w/ magnetic coupling by locating its position on the schematic, which then links to the official BMW part number 64526987862 for the Heater and Air Conditioning section.
