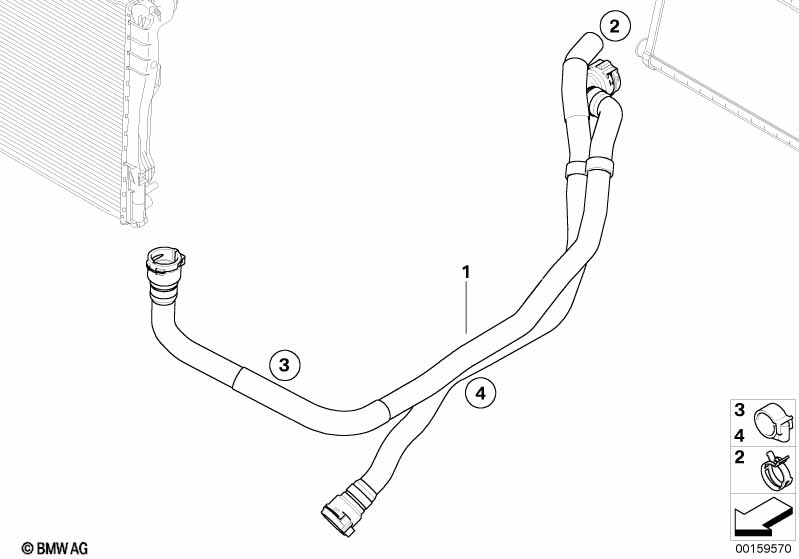

Water hose inlet/outlet for BMW 3 Series E90 318i (2008)
This Water hose inlet/outlet technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Hose f radiator and engine return | 1 | 64219124076 | Shop at ECS Tuning | ||||||
| 02 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 2 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | 1 | 64216963248 | $0.83 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Water hose inlet/outlet?
- This technical diagram illustrates the Water hose inlet/outlet within the Heater and Air Conditioning group for the 3 Series E90 318i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Hose f radiator and engine return (Part #64219124076).
- Which models use the hardware listed in this Water hose inlet/outlet?
- The hardware and components featured in the Water hose inlet/outlet are specific to the 3 Series E90 318i produced during 2008. These technical specifications ensure that parts like the Hose f radiator and engine return (64219124076) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water hose inlet/outlet assembly?
- Each item in the Water hose inlet/outlet corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Hose f radiator and engine return by locating its position on the schematic, which then links to the official BMW part number 64219124076 for the Heater and Air Conditioning section.
