Independent heating water valves for BMW 3 Series E90 LCI 320d (2008)

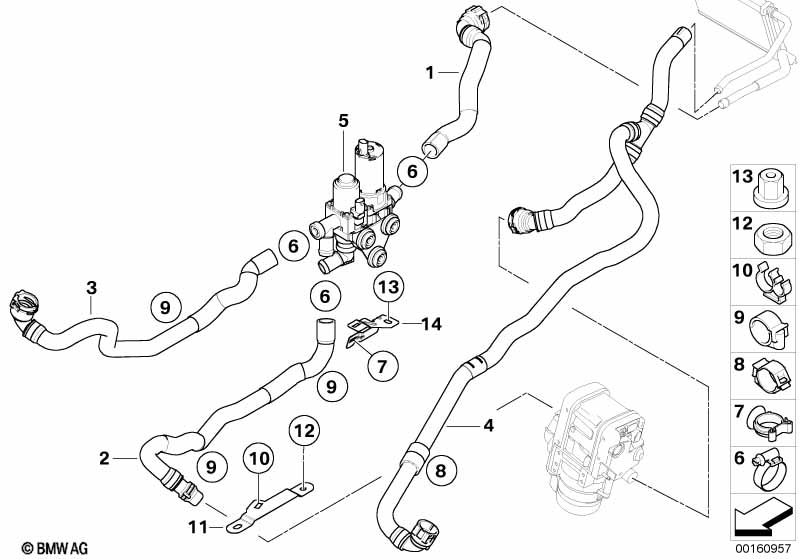

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Hose f radiator-changeover valve | 1 | 64126953090 | $23.71 | Shop at ECS Tuning | |||||
| 02 | Hose, parking heater changeover valve | 1 | 64219130165 | Shop at ECS Tuning | ||||||
| 03 | Hose f engine inlet-changeover valve | 1 | 64219111767 | Shop at ECS Tuning | ||||||
| 04 | Hose f radiator and engine return | 1 | 64219111766 | Shop at ECS Tuning | ||||||
| 05 | Changeover valve | 1 | 64126951813 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | 1 | 07147525090 | $1.13 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 1 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 3 | 64216921540 | $0.62 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 1 | 64219125217 | $1.87 | Shop at ECS Tuning | |||||
| 11 | Metal bracket | 1 | 64219127791 | Shop at ECS Tuning | ||||||
| 12 | Hex nut | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 13 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Metal bracket | 1 | 64129128514 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
