Air duct for BMW 6 Series E63 LCI 650i (2010)

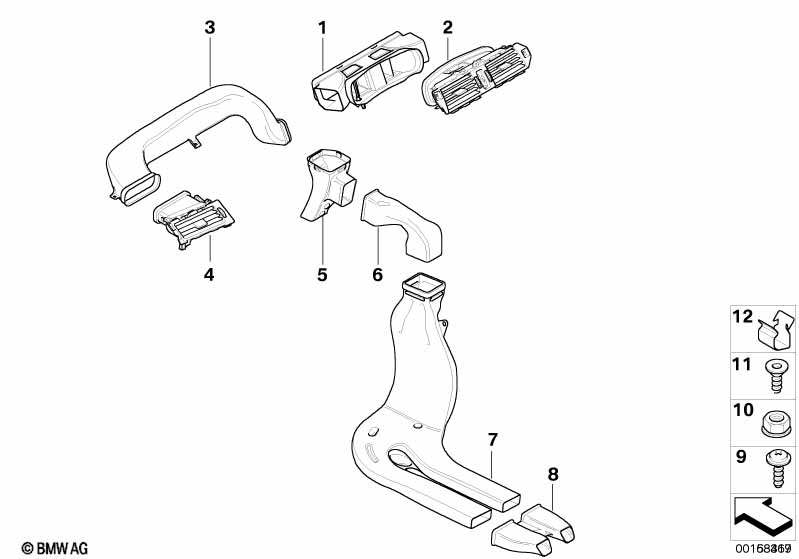

This Air duct technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air distributor | 1 | 64226918847 | Shop at ECS Tuning | ||||||
| 02 | Fresh air grille center | 1 | 64229111670 | $207.89 | Shop at ECS Tuning | |||||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 03 | Air channel right | 1 | 51457126498 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Head-up display |
S610A=No |
|||||||||
| 03 | Air channel left | 1 | 64227072773 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Air channel right | 1 | 64227072774 | +core | Shop at ECS Tuning | |||||
| 04 | Fresh air grille, left | 1 | 64229112088 | Shop at ECS Tuning | ||||||
| 04 | Fresh air grille, right | 1 | 64229112089 | Shop at ECS Tuning | ||||||
| 05 | Left floor heater duct | 1 | 64227074415 | $10.23 | Shop at ECS Tuning | |||||
| 05 | Right floor heater duct | 1 | 64227074416 | $10.23 | Shop at ECS Tuning | |||||
| 06 | Air duct, left footwell | 1 | 64227034123 | $6.37 | Shop at ECS Tuning | |||||
| 06 | Air duct, right footwell | 1 | 64227034124 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 07 | Heater duct, rear, left front | 1 | 51477008955 | $20.08 | Shop at ECS Tuning | |||||
| 07 | Heater duct, rear, right front | 1 | 51477008956 | $20.08 | Shop at ECS Tuning | |||||
| 08 | Heater duct, rear, left rear | 1 | 51477008957 | $8.77 | Shop at ECS Tuning | |||||
| 08 | Heater duct, rear, right rear | 1 | 51477008958 | $8.77 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-10-ZNNIV SI | 2 | 07119906520 | Shop at ECS Tuning | |||||
| 11 | Countersunk screw | 3,5X9 | 1 | 64226936555 | $0.21 | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 64226921596 | $0.37 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
