Coolbox for BMW 7 Series F02 LCI 750LiX (2015)

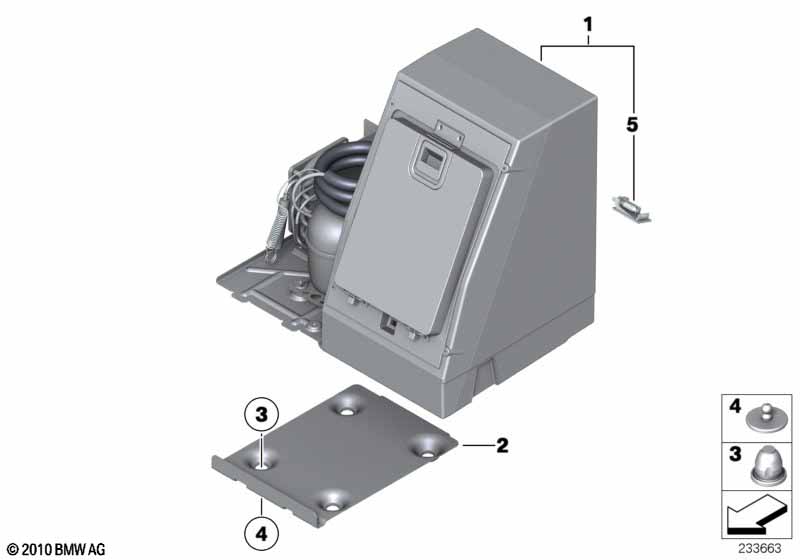

This Coolbox technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 750LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Coolbox |
S791A=Yes |
||||||||
| 01 | Coolbox | 1 | 64117893581 | Shop at ECS Tuning | ||||||
| 02 | Retainer for cooler | 1 | 64117903903 | Shop at ECS Tuning | ||||||
| 03 | Snap-lock coupling | 4 | 46637691016 | $1.54 | Shop at ECS Tuning | |||||
| 04 | Ball pin | 4 | 64117903928 | Shop at ECS Tuning | ||||||
| 05 | LED | 1 | 64118052661 | Shop at ECS Tuning | ||||||
