Housing components for rear a/c for BMW 7 Series F02 LCI 730Li (2015)

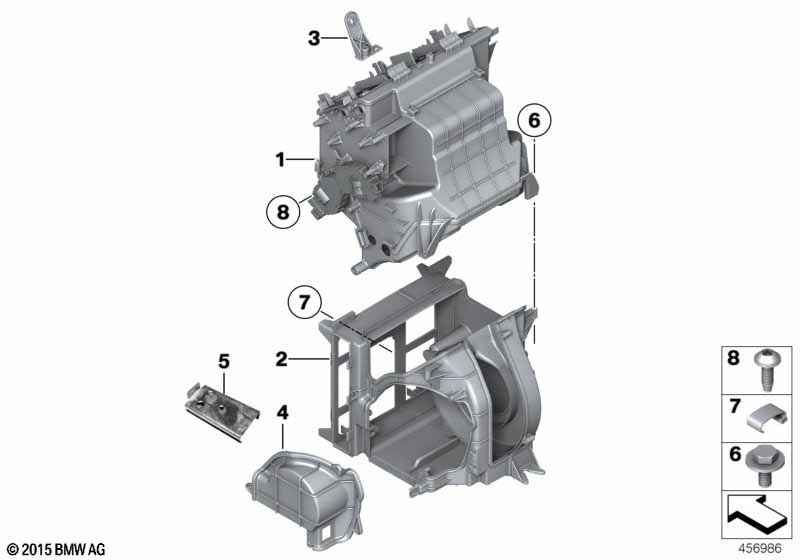

This Housing components for rear a/c technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Expanded rear climate control |
S4NFA=Yes |
||||||||
| 01 | Distribution housing a/c unit | 1 | 64119381012 | Shop at ECS Tuning | ||||||
| 02 | Empty housing, a/c unit | 1 | 03/2011 | 64119248174 | Shop at ECS Tuning | |||||
| 03 | Flange | 1 | 64119159719 | Shop at ECS Tuning | ||||||
| 04 | Covr blower | 1 | 03/2011 | 64119248175 | Shop at ECS Tuning | |||||
| 05 | Clamp, rear air conditioner | 2 | 64119162325 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M6X14-U1 | 3 | 07119905693 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Clamp | 3 | 64116933936 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Screw | 40X14 | X | 64118391265 | $0.22 | Shop at ECS Tuning | ||||
