Cooling water hoses for BMW 6 Series F12 650i (2015)

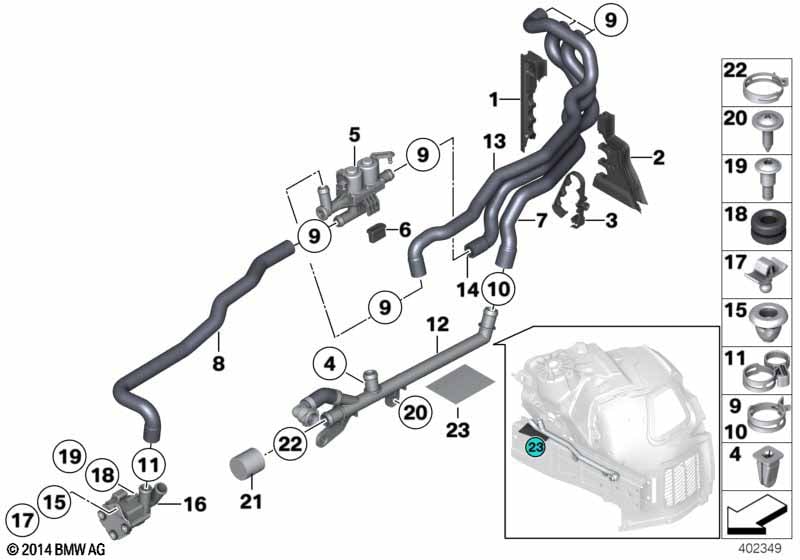

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grommet, upper section | 1 | 64119144101 | Shop at ECS Tuning | ||||||
| 02 | Grommet bottom part | 1 | 64119119425 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp, triple | 1 | 64119178439 | Shop at ECS Tuning | ||||||
| 04 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Water valve | 1 | 64219310349 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Return hose | 1 | 64509169918 | Shop at ECS Tuning | ||||||
| 08 | Water hose inlet 1 | 1 | 64539119174 | Shop at ECS Tuning | ||||||
| 09 | Spring ring shell | D=25MM | 6 | 64213405930 | Shop at ECS Tuning | |||||
| 10 | Spring ring shell | D=28MM | 1 | 64219174340 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | D=27MM | 1 | 64213405913 | $1.67 | Shop at ECS Tuning | ||||
| 12 | Coolant pipe, return line | 1 | 64219231897 | Shop at ECS Tuning | ||||||
| 13 | Water hose inlet 2.2 | 1 | 64539119169 | Shop at ECS Tuning | ||||||
| 14 | Water hose inlet 2.1 | 1 | 64539119168 | Shop at ECS Tuning | ||||||
| 15 | Rubber Mounting | 2 | 64119226852 | Shop at ECS Tuning | ||||||
| 16 | Additional water pump | 1 | 10/2010 | 64119253081 | Shop at ECS Tuning | |||||
| 17 | Pin | 1 | 64119165735 | Shop at ECS Tuning | ||||||
| 18 | Grommet | 1 | 64128374551 | $1.98 | Shop at ECS Tuning | |||||
| 19 | Fillister head screw with collar | 1 | 07149115235 | Shop at ECS Tuning | ||||||
| 20 | Fillister head screw | L=18MM | 1 | 07147146367 | $0.29 | Shop at ECS Tuning |
