Coolant hoses for auxiliary heater for BMW 5 Series F07 GT LCI 535d (2017)

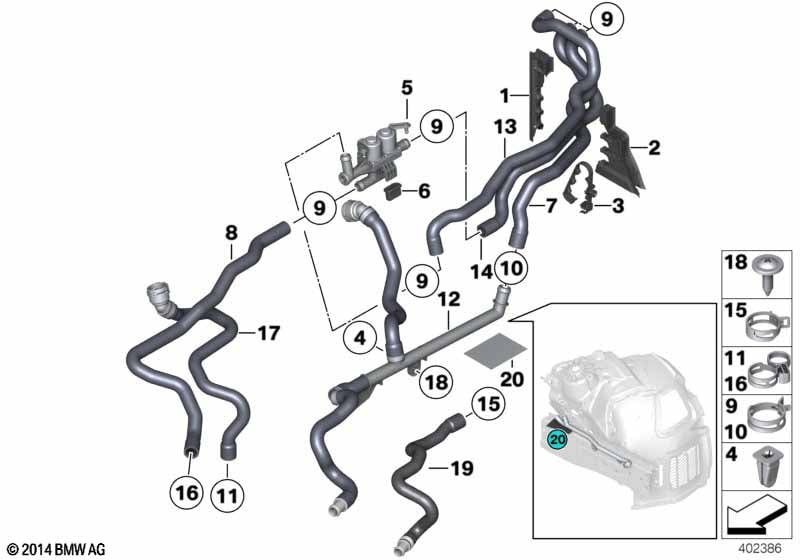

This Coolant hoses for auxiliary heater technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grommet, upper section | 1 | 64119144101 | Shop at ECS Tuning | ||||||
| 02 | Grommet bottom part | 1 | 64119119425 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp, triple | 1 | 64119178439 | Shop at ECS Tuning | ||||||
| 04 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Water valve | 1 | 64219310349 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Return hose | 1 | 64509169918 | Shop at ECS Tuning | ||||||
| 08 | Hose, inlet | 1 | 64509170345 | Shop at ECS Tuning | ||||||
| 09 | Spring ring shell | D=25MM | 6 | 64213405930 | Shop at ECS Tuning | |||||
| 10 | Spring ring shell | D=28MM | 1 | 64219174340 | Shop at ECS Tuning | |||||
| 11 | Spring ring shell | D=28MM | 1 | 64219182743 | Shop at ECS Tuning | |||||
| 12 | Coolant pipe, return line | 1 | 64219248663 | Shop at ECS Tuning | ||||||
| 13 | Water hose inlet 2.2 | 1 | 64539119169 | Shop at ECS Tuning | ||||||
| 14 | Water hose inlet 2.1 | 1 | 64539119168 | Shop at ECS Tuning | ||||||
| 15 | Hose clamp | D=30MM | 1 | 64219174341 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | D=27MM | 1 | 64219182742 | Shop at ECS Tuning | |||||
| 17 | Hose, inlet | 1 | 64219241360 | Shop at ECS Tuning | ||||||
| 18 | Fillister head screw | L=18MM | 1 | 07147146367 | $0.29 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F07 GT LCI 535d Coolant hoses for auxiliary heater?
- This technical diagram illustrates the Coolant hoses for auxiliary heater within the Heater and Air Conditioning group for the 5 Series F07 GT LCI 535d produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Grommet, upper section (Part #64119144101).
- Which models use the hardware listed in this Coolant hoses for auxiliary heater?
- The hardware and components featured in the Coolant hoses for auxiliary heater are specific to the 5 Series F07 GT LCI 535d produced during 2017. These technical specifications ensure that parts like the Grommet, upper section (64119144101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant hoses for auxiliary heater assembly?
- Each item in the Coolant hoses for auxiliary heater corresponds to the numbered list below the illustration. For the 5 Series F07 GT LCI 535d, you can identify the Grommet, upper section by locating its position on the schematic, which then links to the official BMW part number 64119144101 for the Heater and Air Conditioning section.
