Coolant lines for BMW 3 Series E91 LCI 330xd (2008)

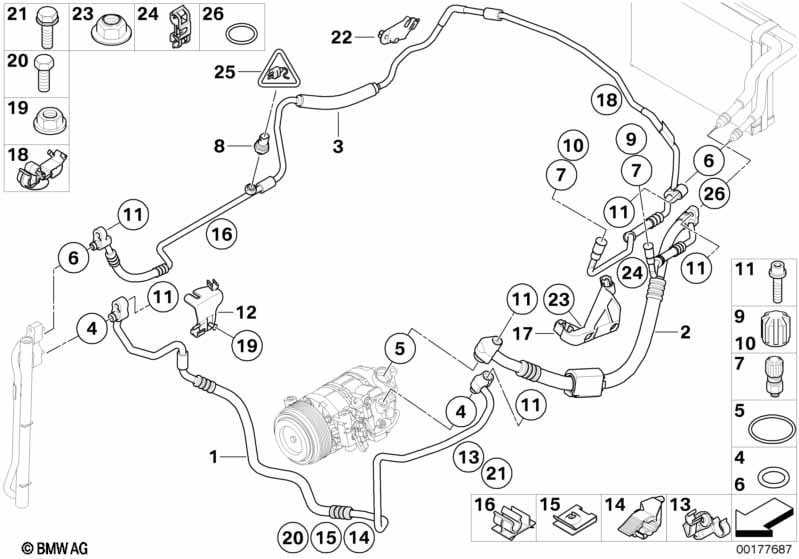

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64509190452 | +core | Shop at ECS Tuning | |||||
| 02 | Suction pipe evaporator-compressor | 1 | 64509209715 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Bracket for air conditioning line | 1 | 64536964967 | $1.73 | Shop at ECS Tuning | |||||
| 03 | Pressure hose,condenser,evaporator | 1 | 09/2010 | 64509190453 | +core | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | D=23 MM | 1 | 64508363041 | $1.22 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 07 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 08 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 09 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 10 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Fillister head with washer | M8X30-U1-ZNS3 | 6 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Pressure hose bracket | 1 | 64509190454 | Shop at ECS Tuning | ||||||
| 13 | Double holder | 1 | 64509190455 | Shop at ECS Tuning | ||||||
| 14 | Holder | 1 | 64509190456 | +core | Shop at ECS Tuning | |||||
| 15 | Clip nut | M6-ZNS3 | 1 | 11427789289 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Bracket pressure pipe airconditioner | 1 | 64536951634 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Bracket suction pipe airconditioner | 1 | 64509163321 | $15.84 | Shop at ECS Tuning | |||||
| 18 | Dual clip | 1 | 64509169522 | $1.12 | Shop at ECS Tuning | |||||
| 19 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | 1 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 21 | Collar screw | M6X18-ZNS3 | 1 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 22 | Bracket pressure pipe airconditioner | 1 | 64536939333 | $1.33 | Shop at ECS Tuning | |||||
| 23 | Self-locking hex nut | M6 | 2 | 07146938618 | $0.27 | Shop at ECS Tuning | ||||
| 24 | Cable holder | 1 | 12527548692 | $1.68 | Shop at ECS Tuning | |||||
| 26 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
