Independent heating water valves for BMW 3 Series E91 LCI 330xd (2008)

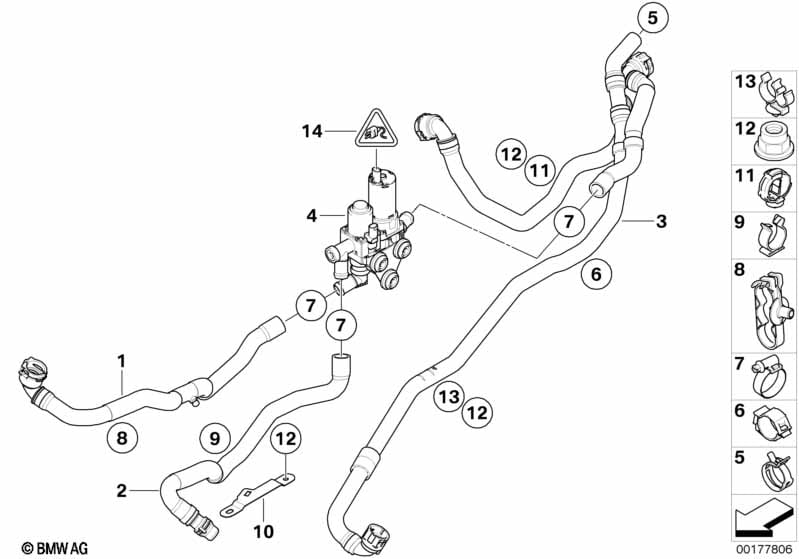

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Hose f change over valve-engine inlet | 1 | 64219172939 | +core | Shop at ECS Tuning | |||||
| 02 | Hose, parking heater changeover valve | 1 | 64219172938 | +core | Shop at ECS Tuning | |||||
| 03 | Hose f independ.heater and engine return | 1 | 64219180359 | +core | Shop at ECS Tuning | |||||
| 04 | Changeover valve | 1 | 64126951813 | Shop at ECS Tuning | ||||||
| 05 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 1 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hose clamp, inlet | 1 | 64118363051 | $1.42 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 1 | 64216921540 | $0.62 | Shop at ECS Tuning | |||||
| 10 | Metal bracket | 1 | 64219127791 | Shop at ECS Tuning | ||||||
| 11 | Pipe support | 1 | 11721432400 | $0.78 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M6-8-ZNS3 | 4 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 13 | Hose clamp, double | 1 | 64219119951 | $0.78 | Shop at ECS Tuning | |||||
| 14 | Universal socket housing uncoded | 2 POL. | 1 | 10/2013 | 61138795954 | Shop at ECS Tuning | ||||
| 14 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 330xd Independent heating water valves?
- This technical diagram illustrates the Independent heating water valves within the Heater and Air Conditioning group for the 3 Series E91 LCI 330xd produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Hose f change over valve-engine inlet (Part #64219172939).
- Which models use the hardware listed in this Independent heating water valves?
- The hardware and components featured in the Independent heating water valves are specific to the 3 Series E91 LCI 330xd produced during 2008. These technical specifications ensure that parts like the Hose f change over valve-engine inlet (64219172939) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Independent heating water valves assembly?
- Each item in the Independent heating water valves corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 330xd, you can identify the Hose f change over valve-engine inlet by locating its position on the schematic, which then links to the official BMW part number 64219172939 for the Heater and Air Conditioning section.
