Air duct, rear air conditioning for BMW 7 Series F02 LCI 730Li (2015)

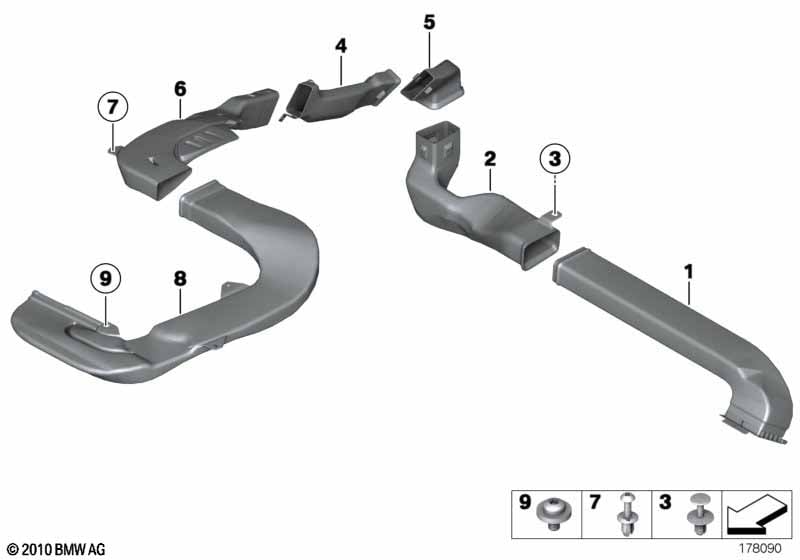

This Air duct, rear air conditioning technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Expanded rear climate control |
S4NFA=Yes |
||||||||
| 01 | Air duct, rear compartment, rear left | 1 | 64229121003 | Shop at ECS Tuning | ||||||
| 01 | Air duct, rear compartment, rear right | 1 | 64229121004 | Shop at ECS Tuning | ||||||
| 02 | Air duct, rear compartment, rear left | 1 | 64229121005 | Shop at ECS Tuning | ||||||
| 02 | Air duct, rear compartment, rear right | 1 | 64229121006 | Shop at ECS Tuning | ||||||
| 03 | Expanding rivet | D = 8MM | 1 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Air duct, rear, center left | 1 | 64229128655 | Shop at ECS Tuning | ||||||
| 04 | Air duct, rear right | 1 | 64229128656 | Shop at ECS Tuning | ||||||
| 05 | Air duct, rear, lower left | 1 | 64229124937 | Shop at ECS Tuning | ||||||
| 05 | Air duct, rear, lower right | 1 | 64229124938 | Shop at ECS Tuning | ||||||
| 06 | Air duct, top rear left | 1 | 64229124935 | Shop at ECS Tuning | ||||||
| 06 | Air duct, upper, rear right | 1 | 64229124936 | Shop at ECS Tuning | ||||||
| 07 | Expanding rivet | 6 | 51488353567 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Air duct, roof, left | 1 | 64229124939 | Shop at ECS Tuning | ||||||
| 08 | Air duct, roof, right | 1 | 64229124940 | Shop at ECS Tuning | ||||||
| 09 | Oval-head screw with washer | M5X10 | 6 | 07146977633 | Shop at ECS Tuning | |||||
