Coolant lines for BMW 5 Series F10 523i (2011)

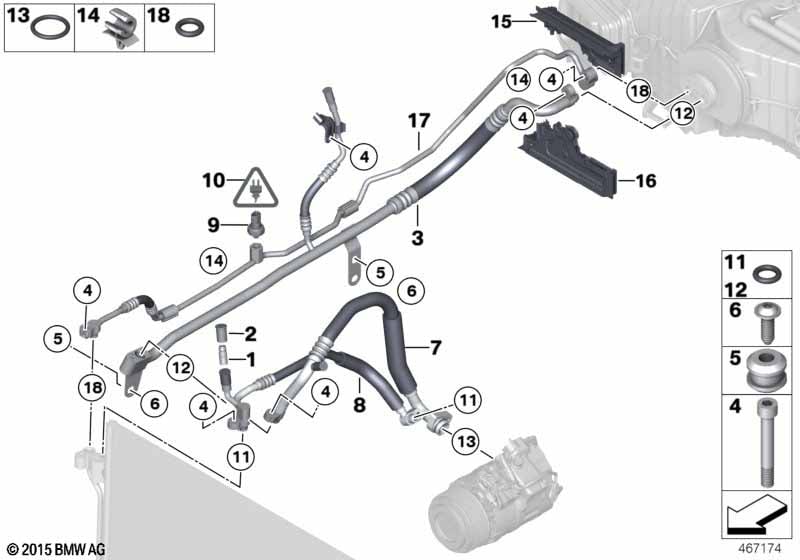

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Valve | R134A/R1234YF | 1 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 02 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 03 | Suction pipe with filler neck | 1 | 06/2009 | 64539378003 | Shop at ECS Tuning | |||||
| For vehicles with Expanded rear climate control |
S4NFA=No |
|||||||||
| 03 | Suction pipe with filler neck | R134A | 1 | 64539120005 | +core | Shop at ECS Tuning | ||||
| 03 | Suction pipe without filler neck | 1 | 64539201927 | Shop at ECS Tuning | ||||||
| 04 | Internal Torx screw with washer | M6X25-U1-8.8 | 5 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Grommet | 3 | 64128374551 | $1.98 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw with collar | 3 | 07149115235 | Shop at ECS Tuning | ||||||
| 07 | Suction pipe with filler neck | 1 | 64539359041 | Shop at ECS Tuning | ||||||
| 08 | Pressure hose assy | 1 | 64539251510 | Shop at ECS Tuning | ||||||
| 09 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 11 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | D=13,7 MM | 2 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | D=23 MM | 1 | 64508363041 | $1.22 | Shop at ECS Tuning | ||||
| 14 | Pipe clip | D=10MM | 1 | 64539167145 | Shop at ECS Tuning | |||||
| 15 | Grommet, upper section | 1 | 64509127397 | Shop at ECS Tuning | ||||||
| 16 | Grommet bottom part | 1 | 64539119426 | Shop at ECS Tuning | ||||||
| 17 | Pressure pipe | 1 | 64509190502 | +core | Shop at ECS Tuning | |||||
| 18 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 523i Coolant lines?
- This technical diagram illustrates the Coolant lines within the Heater and Air Conditioning group for the 5 Series F10 523i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Valve (Part #64536922944).
- Which models use the hardware listed in this Coolant lines?
- The hardware and components featured in the Coolant lines are specific to the 5 Series F10 523i produced during 2011. These technical specifications ensure that parts like the Valve (64536922944) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines assembly?
- Each item in the Coolant lines corresponds to the numbered list below the illustration. For the 5 Series F10 523i, you can identify the Valve by locating its position on the schematic, which then links to the official BMW part number 64536922944 for the Heater and Air Conditioning section.
