Heater unit, Denso for BMW 3 Series E90 LCI 320d (2011)

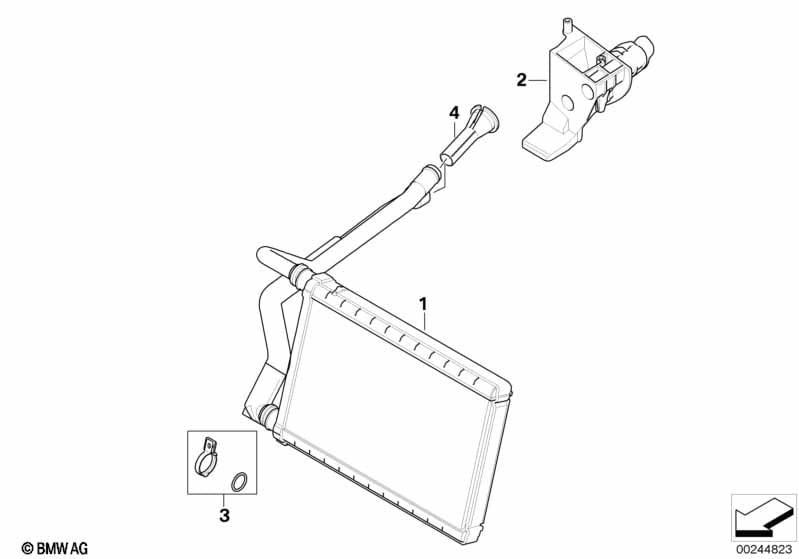

This Heater unit, Denso technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important: Before ordering heater Determine manufacturer |
|||||||||
| Check installation in vehicle! Teilenummer/Hersteller direkt vom Heizkörper ablesen, nicht vom Heiz/Klimagerät |
||||||||||
| 01 | Heating element with double pipe | DENSO | 1 | 64119190596 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO AIR CONDITION | ||||||||||
| 02 | Grommet for water pipe | DENSO | 1 | 64116951394 | $6.92 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO HEATER | ||||||||||
| 02 | Grommet for water pipe | DENSO | 1 | 64116951396 | $6.92 | Shop at ECS Tuning | ||||
| 03 | Set, small parts, heater | 1 | 64119180102 | $34.38 | Shop at ECS Tuning | |||||
| 04 | Throttle | DENSO | 1 | 64119253425 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Heater unit, Denso?
- This technical diagram illustrates the Heater unit, Denso within the Heater and Air Conditioning group for the 3 Series E90 LCI 320d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Heating element with double pipe (Part #64119190596).
- Which models use the hardware listed in this Heater unit, Denso?
- The hardware and components featured in the Heater unit, Denso are specific to the 3 Series E90 LCI 320d produced during 2011. These technical specifications ensure that parts like the Heating element with double pipe (64119190596) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater unit, Denso assembly?
- Each item in the Heater unit, Denso corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Heating element with double pipe by locating its position on the schematic, which then links to the official BMW part number 64119190596 for the Heater and Air Conditioning section.
