Heat exchanger Valeo from 07/2006 for BMW 3 Series E92 LCI 320i (2013)

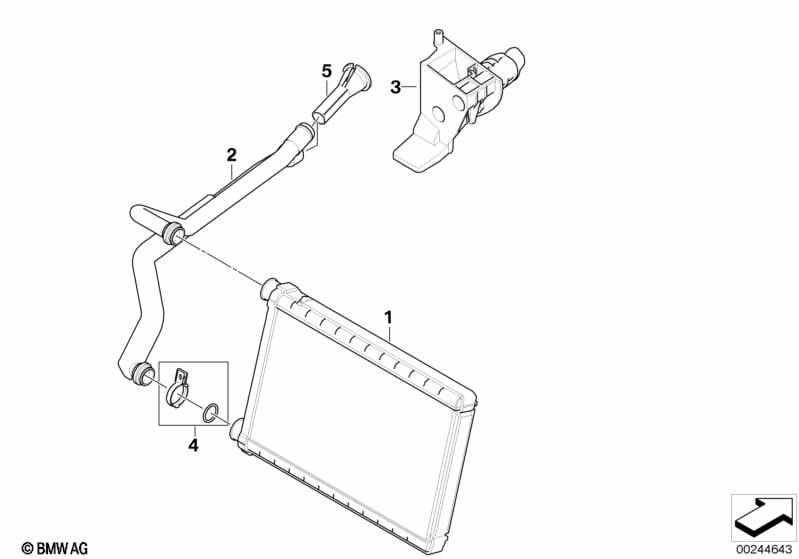

This Heat exchanger Valeo from 07/2006 technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important: Before ordering heater Determine manufacturer here Valeo climate control |
|||||||||
| Check installation in vehicle! Teilenummer/Hersteller direkt vom Heizkörper ablesen, nicht vom Heiz/Klimagerät |
||||||||||
| 01 | Heater radiator | VALEO | 1 | 07/2006 | 64119128953 | $126.10 | Shop at ECS Tuning | |||
| 02 | Double pipe | VALEO | 1 | 07/2006 | 64119128954 | $58.08 | Shop at ECS Tuning | |||
| 03 | Grommet for water pipe | VALEO | 1 | 07/2006 | 64116951389 | $17.10 | Shop at ECS Tuning | |||
| 04 | Set, small parts, heater | 1 | 07/2006 | 64119180102 | $34.38 | Shop at ECS Tuning | ||||
| 05 | Throttle | VALEO | 2 | 07/2006 | 64119253426 | Shop at ECS Tuning | ||||
