Independent heating water valves for BMW 3 Series E92 LCI 320d (2010)

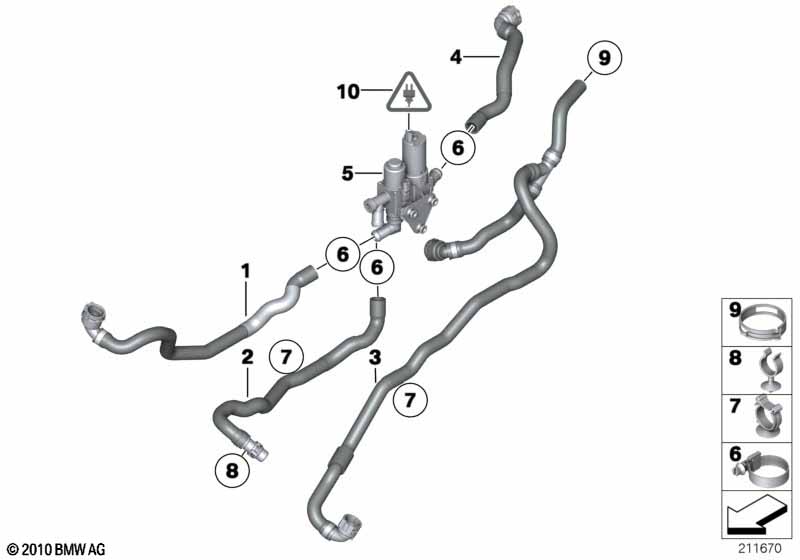

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Hose f engine inlet-changeover valve | 1 | 64219222655 | Shop at ECS Tuning | ||||||
| 02 | Hose f independ.heater and water valve | 1 | 64219222654 | Shop at ECS Tuning | ||||||
| 03 | Hose f independ.heater and engine return | 1 | 64219222653 | Shop at ECS Tuning | ||||||
| 04 | Hose f radiator-changeover valve | 1 | 64126953090 | $23.71 | Shop at ECS Tuning | |||||
| 05 | Changeover valve | 1 | 64126951813 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | D=23MM | 2 | 64219222656 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 1 | 64219222657 | Shop at ECS Tuning | ||||||
| 09 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
