Heater duct rear/covering for BMW 7 Series E32 730iL (1994)

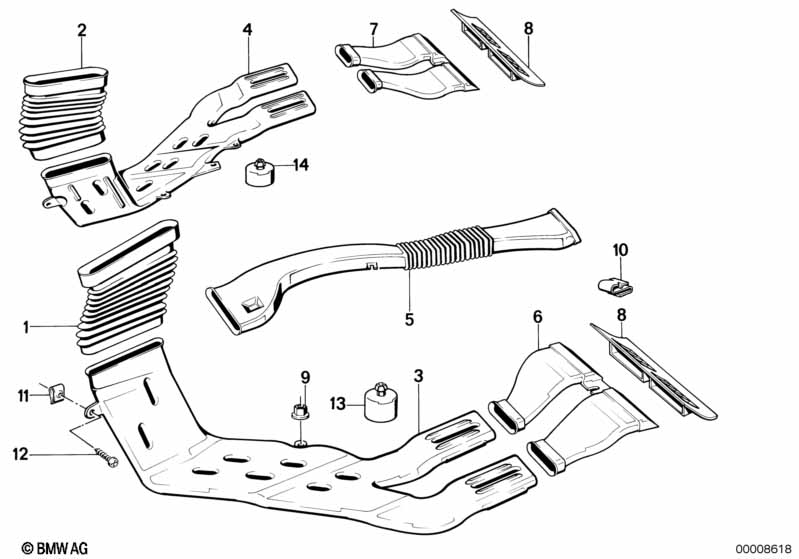

This Heater duct rear/covering technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intermediate piece, left | 1 | 64221908673 | $2.95 | Shop at ECS Tuning | |||||
| 02 | Intermediate piece, right | 1 | 64221908674 | $2.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Heater duct rear left | 1 | 64221908669 | $14.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | Heater duct rear right | 1 | 64221908670 | $14.95 | Shop at ECS Tuning | |||||
| 05 | Rear heater duct | 1 | 64221928626 | ENDED | Shop at ECS Tuning | |||||
| 06 | Heater duct rear left | 1 | 64221908671 | $10.67 | Shop at ECS Tuning | |||||
| 07 | Heater duct rear right | 1 | 64221908672 | $10.73 | Shop at ECS Tuning | |||||
| 08 | Cover | ANTHRAZIT | 2 | 51478140079 | $6.03 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | SILBERGRAU | 2 | 51478140080 | $6.03 | Shop at ECS Tuning | ||||
| 08 | Cover | ULTRAMARIN | 2 | 51478140081 | $6.03 | Shop at ECS Tuning | ||||
| 08 | Cover | PERGAMENT | 2 | 51478140082 | $6.03 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | CARDINALROT | 2 | 64221945859 | $6.39 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | SCHIEFER | 2 | 64221948987 | $6.27 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | INDIGO | 2 | 64221948988 | $6.27 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | HAVANNA | 2 | 64221948989 | $11.16 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | NATUR | 2 | 09/1987 | 64221974499 | $6.27 | ENDED | Shop at ECS Tuning | ||
| 09 | Plastic nut for coarse threaded pin | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Clamp | 6 | 51431852731 | $0.52 | ENDED | Shop at ECS Tuning | ||||
| 11 | Body nut | ST4,2-1-ZNS3 | X | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST4,2X16-Z2 | X | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Support left | 1 | 64221964675 | $1.67 | Shop at ECS Tuning | |||||
| 14 | Support right | 1 | 64221964676 | $1.67 | Shop at ECS Tuning |
