Air channel for BMW 6 Series F06 Gran Coupé 650iX (2015)

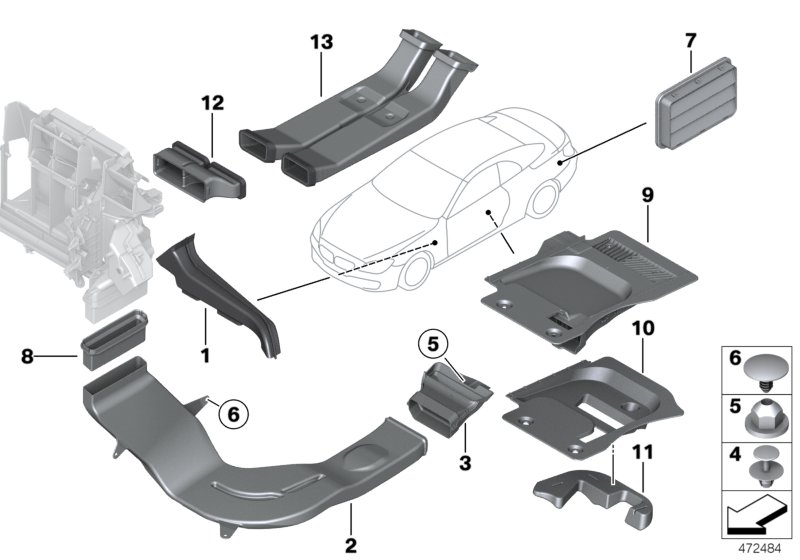

This Air channel technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé 650iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air duct, footwell, driver's side | 1 | 51459112176 | Shop at ECS Tuning | ||||||
| 01 | Air duct, footwell, passenger side | 1 | 64229112177 | Shop at ECS Tuning | ||||||
| 02 | Air duct, rear compartment, front left | 1 | 64229114587 | Shop at ECS Tuning | ||||||
| 02 | Air duct, rear compartment, front right | 1 | 64229113014 | +core | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 4 | 61131378641 | $0.35 | Shop at ECS Tuning | |||||
| 05 | Cap nut | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Plug, black | D=5MM | 6 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Breather covering rear | SCHWARZ | 2 | 64226962293 | $7.30 | Shop at ECS Tuning | ||||
| 08 | Adapter for air duct | 2 | 64119145229 | Shop at ECS Tuning | ||||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 09 | Air duct, rear compartment, lower left | 1 | 64119242214 | Shop at ECS Tuning | ||||||
| 09 | Air duct, rear compartment, lower right | 1 | 64119242215 | Shop at ECS Tuning | ||||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=No |
|||||||||
| 09 | Air duct, rear compartment, lower left | 1 | 64119242212 | Shop at ECS Tuning | ||||||
| 09 | Air duct, rear compartment, lower right | 1 | 64119242213 | Shop at ECS Tuning | ||||||
| 12 | Adapter for air duct | 1 | 03/2016 | 64229113859 | ENDED | Shop at ECS Tuning | ||||
| 12 | Adapter for air duct | 1 | 64229397743 | Shop at ECS Tuning | ||||||
| 13 | Air channel center | 1 | 64229237102 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
