Cooling water hoses for BMW 1 Series F21 118i (2015)

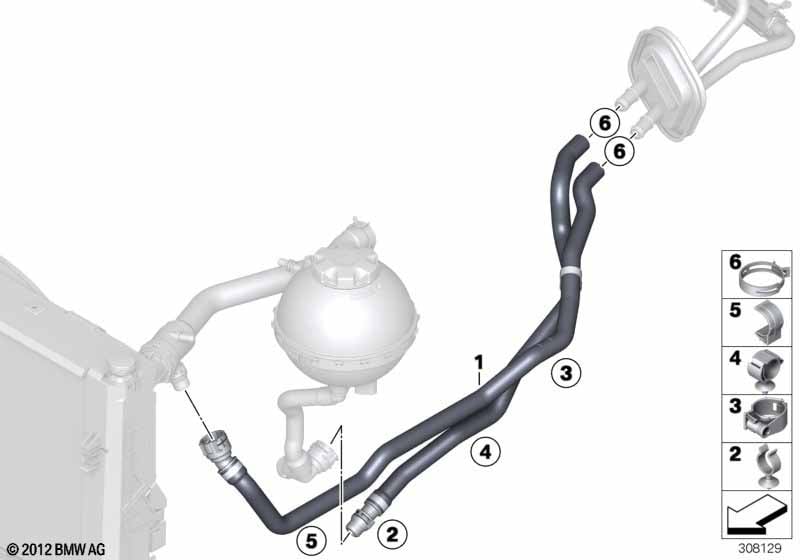

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater hose | 1 | 64219223587 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | 1 | 64126953784 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp | 1 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | 1 | 11537599270 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | 1 | 64219238370 | Shop at ECS Tuning | ||||||
| 06 | Spring ring shell | D=25MM | 2 | 64213405930 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F21 118i Cooling water hoses?
- This technical diagram illustrates the Cooling water hoses within the Heater and Air Conditioning group for the 1 Series F21 118i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Heater hose (Part #64219223587).
- Which models use the hardware listed in this Cooling water hoses?
- The hardware and components featured in the Cooling water hoses are specific to the 1 Series F21 118i produced during 2015. These technical specifications ensure that parts like the Heater hose (64219223587) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling water hoses assembly?
- Each item in the Cooling water hoses corresponds to the numbered list below the illustration. For the 1 Series F21 118i, you can identify the Heater hose by locating its position on the schematic, which then links to the official BMW part number 64219223587 for the Heater and Air Conditioning section.
