Air-conditioner compressor/mounting part for BMW 1 Series F21 116i (2015)

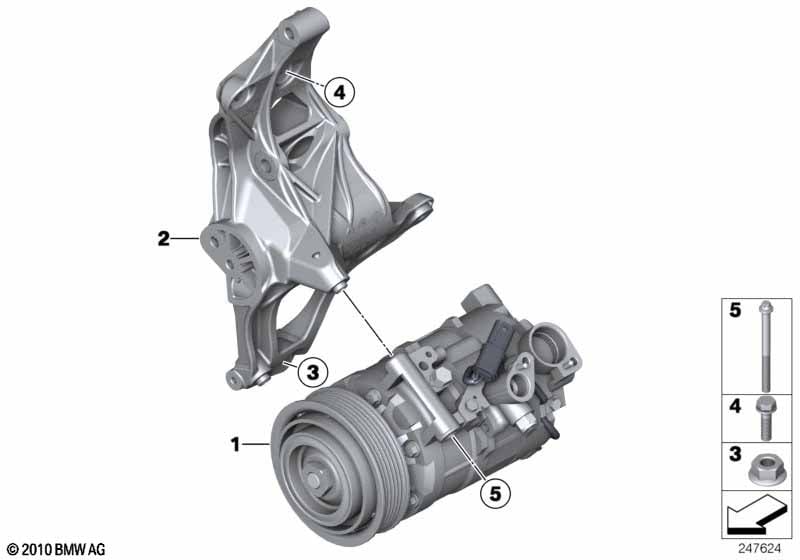

This Air-conditioner compressor/mounting part technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air conditioning compressor | 1 | 64529222308 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 01 | Air conditioning compressor | 1 | 64529222296 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 optimization |
P7HSA=Yes |
|||||||||
| 01 | Air conditioning compressor | 1 | 64529222296 | Shop at ECS Tuning | ||||||
| 02 | Climate compressor supporting bracket | 1 | 64557603346 | Shop at ECS Tuning | ||||||
| 03 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X30-ZNNIV SI | 4 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X95X30 | 3 | 07129907036 | Shop at ECS Tuning | |||||
