Air cond.compressor-supporting bracket for BMW 5 Series E34 525tds (1995)

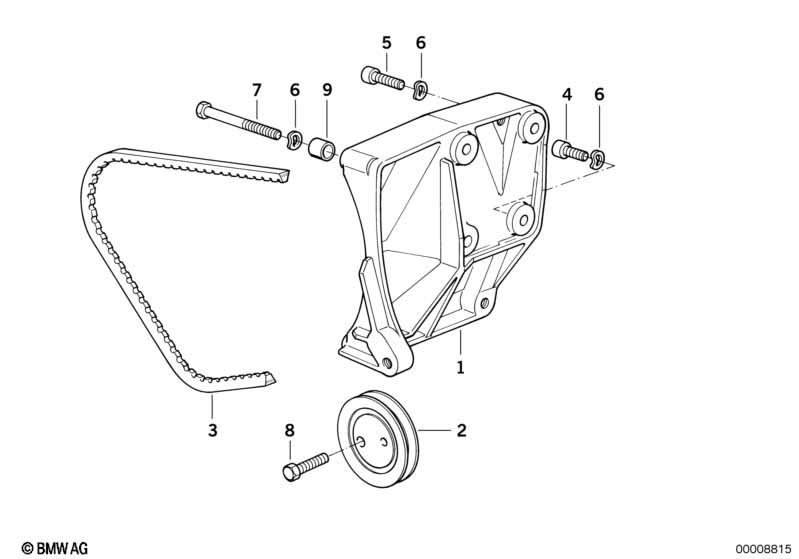

This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Climate compressor supporting bracket | 1 | 64552245412 | $54.75 | Shop at ECS Tuning | |||||
| 02 | Adjusting pulley | 1 | 11282245087 | $80.75 | Shop at ECS Tuning | |||||
| 03 | Ribbed v-belt | 4PK X 778 | 1 | 64552245451 | $18.70 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X25-Z1 | 4 | 07119901687 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X90-Z3 | 4 | 07119913103 | $0.76 | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | M8X30-8.8-ZNS | 1 | 07119901025 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Dowel | D=11,1MM | 1 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
