RP A/C compressor for BMW 7 Series F02 LCI 730Ld (2015)

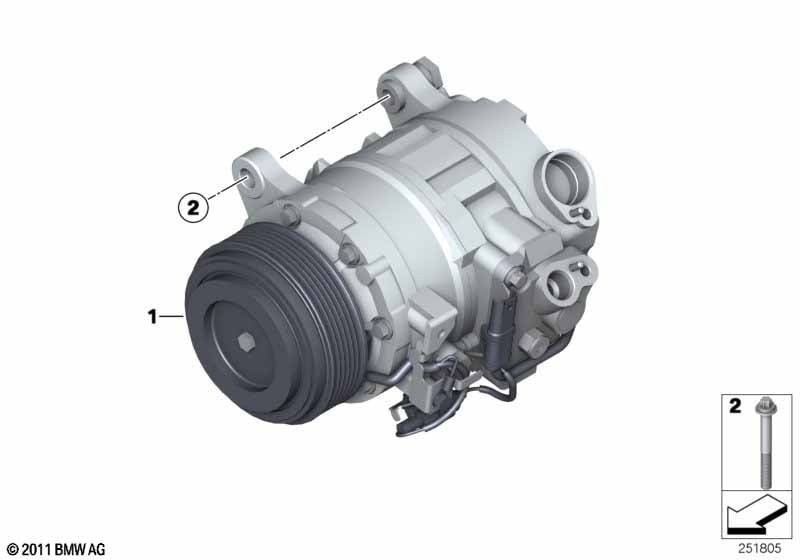

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP Reman air con comp w magnetic coup | R134A/R1234YF-C | 1 | 64525A7F913 | Shop at ECS Tuning | |||||
| 01 | Air cond.compressor w/ magnetic coupling | R134A/R1234YF | 1 | 64529399059 | Shop at ECS Tuning | |||||
| 02 | Star-socket screw | BM10X125 | 2 | 12319908092 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 730Ld RP A/C compressor?
- This technical diagram illustrates the RP A/C compressor within the Heater and Air Conditioning group for the 7 Series F02 LCI 730Ld produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the RP Reman air con comp w magnetic coup (Part #64525A7F913).
- Which models use the hardware listed in this RP A/C compressor?
- The hardware and components featured in the RP A/C compressor are specific to the 7 Series F02 LCI 730Ld produced during 2015. These technical specifications ensure that parts like the RP Reman air con comp w magnetic coup (64525A7F913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the RP A/C compressor assembly?
- Each item in the RP A/C compressor corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 730Ld, you can identify the RP Reman air con comp w magnetic coup by locating its position on the schematic, which then links to the official BMW part number 64525A7F913 for the Heater and Air Conditioning section.
