Outside air duct with water separator for BMW MINI Clubman F54 Cooper (2019)

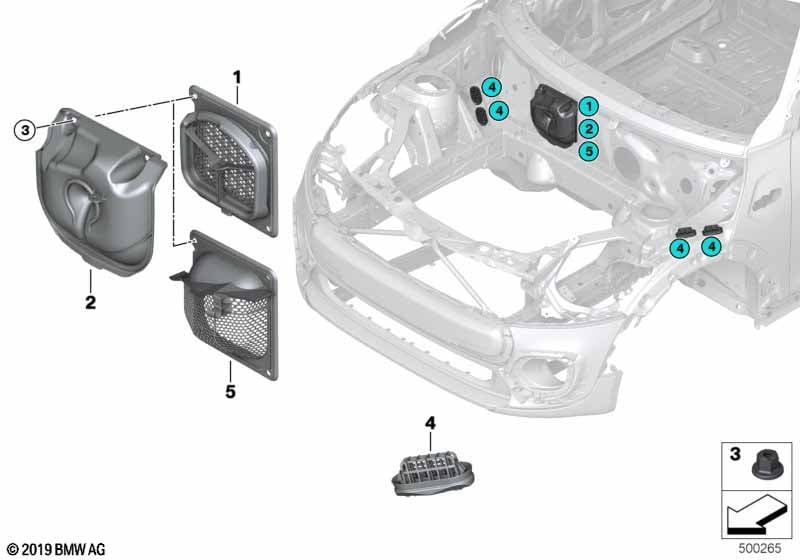

This Outside air duct with water separator technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.

Outside air duct with water separator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fresh-air duct 1 07/2019 64316824632 Shop at ECS Tuning
02 Fresh-air duct 1 07/2019 64316824632 Shop at ECS Tuning
03 Plastic nut for coarse threaded pin M6 4 07/2019 16131176747 $0.53 Shop at ECS Tuning
03 Plastic nut for coarse threaded pin M6 4 07147336362 Shop at ECS Tuning
04 Residual water grommet 4 64119304296 Shop at ECS Tuning
