Outside air duct with water separator for BMW 2 Series F44 Gran Coupé M235iX (2024)

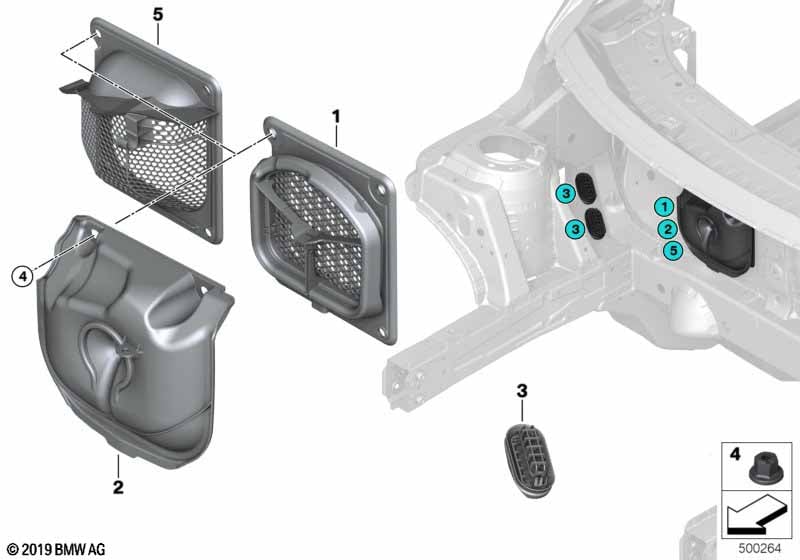

This Outside air duct with water separator technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé M235iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Residual water grommet | 4 | 64119304296 | Shop at ECS Tuning | ||||||
| 04 | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| 05 | Fresh-air duct | 1 | 64316824632 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé M235iX Outside air duct with water separator?
- This technical diagram illustrates the Outside air duct with water separator within the Heater and Air Conditioning group for the 2 Series F44 Gran Coupé M235iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Residual water grommet (Part #64119304296).
- Which models use the hardware listed in this Outside air duct with water separator?
- The hardware and components featured in the Outside air duct with water separator are specific to the 2 Series F44 Gran Coupé M235iX produced during 2024. These technical specifications ensure that parts like the Residual water grommet (64119304296) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Outside air duct with water separator assembly?
- Each item in the Outside air duct with water separator corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé M235iX, you can identify the Residual water grommet by locating its position on the schematic, which then links to the official BMW part number 64119304296 for the Heater and Air Conditioning section.
