RP A/C compressor for BMW 2 Series F46 Gran Tourer LCI 220d (2021)

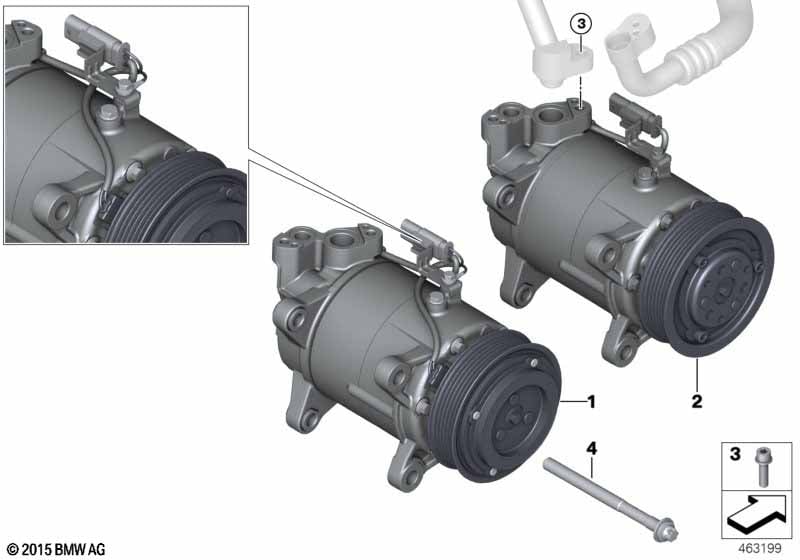

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.

RP A/C compressor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Check installation in vehicle!
01 Air cond.compressor w/ magnetic coupling R134A/R1234YF 1 12/2022 64525A21D11 ENDED Shop at ECS Tuning
01 Air cond.compressor w/ magnetic coupling R134A/R1234YF 1 64525A5C710 Shop at ECS Tuning
03 ISA screw M8X30-U1-8.8 2 07129904835 $2.29 Shop at ECS Tuning
04 Star-socket screw BM10X125 2 12319908092 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
