Climate compressor mounting parts for BMW 3 Series E36 318ti (1996)

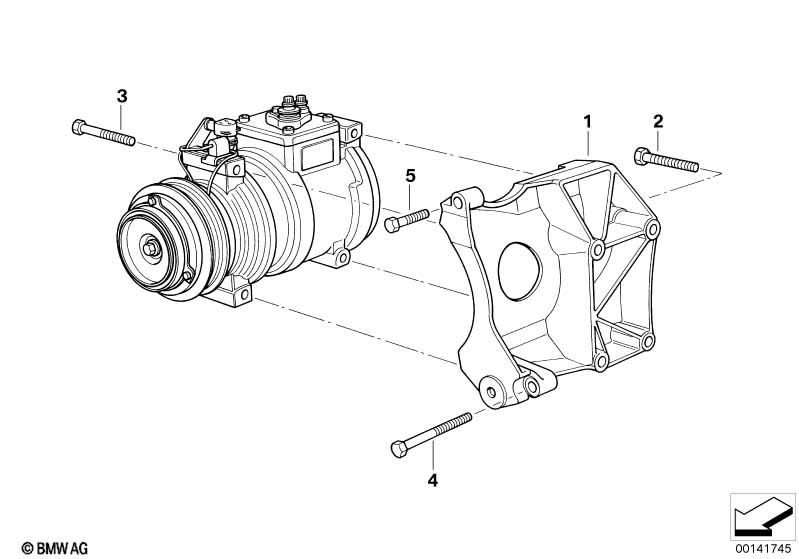

This Climate compressor mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Climate compressor supporting bracket | 1 | 09/1993 | 64551739627 | $54.75 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X50 | 1 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X50 | 4 | 09/1993 | 07119904533 | $2.84 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M8X100 | 1 | 09/1993 | 07119912570 | $1.78 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M8X40-Z1-ZNS3 | 1 | 09/1993 | 07119902927 | $1.05 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Climate compressor mounting parts?
- This technical diagram illustrates the Climate compressor mounting parts within the Heater and Air Conditioning group for the 3 Series E36 318ti produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Climate compressor supporting bracket (Part #64551739627).
- Which models use the hardware listed in this Climate compressor mounting parts?
- The hardware and components featured in the Climate compressor mounting parts are specific to the 3 Series E36 318ti produced during 1996. These technical specifications ensure that parts like the Climate compressor supporting bracket (64551739627) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Climate compressor mounting parts assembly?
- Each item in the Climate compressor mounting parts corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Climate compressor supporting bracket by locating its position on the schematic, which then links to the official BMW part number 64551739627 for the Heater and Air Conditioning section.
