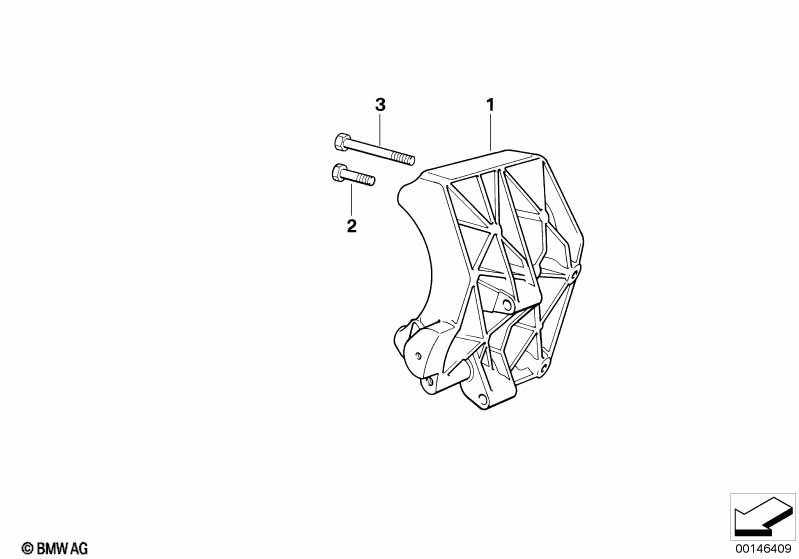

Climate compressor supporting bracket for BMW 3 Series E36 M3 (1995)
This Climate compressor supporting bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Carrier | 1 | 64551402233 | $87.50 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X30-Z3 | 4 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X50-U1-8.8 | 2 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X90-U1 | 1 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M8X104-Z3 | 3 | 11721738783 | $3.57 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Climate compressor supporting bracket?
- This technical diagram illustrates the Climate compressor supporting bracket within the Heater and Air Conditioning group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Carrier (Part #64551402233).
- Which models use the hardware listed in this Climate compressor supporting bracket?
- The hardware and components featured in the Climate compressor supporting bracket are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Carrier (64551402233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Climate compressor supporting bracket assembly?
- Each item in the Climate compressor supporting bracket corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Carrier by locating its position on the schematic, which then links to the official BMW part number 64551402233 for the Heater and Air Conditioning section.
