Climate capacitor/additional blower for BMW 3 Series E36 323i (1999)

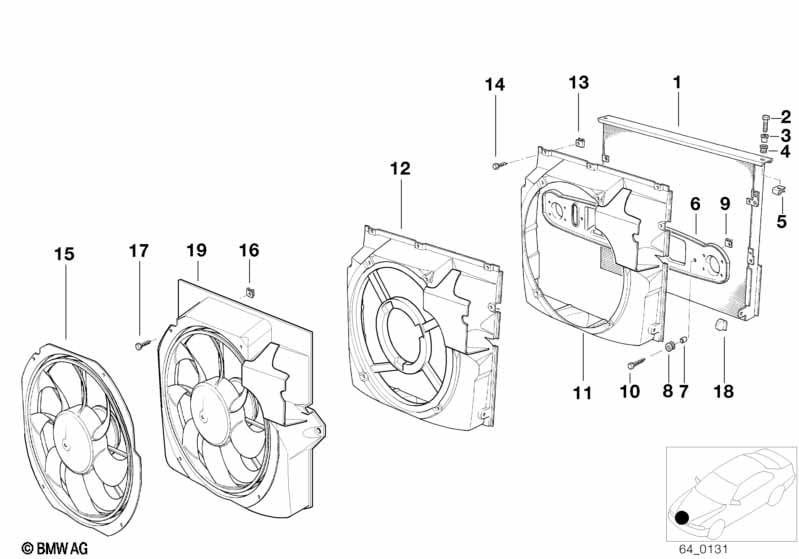

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Illustration not valid for retrofit air conditioning Economic. For parts of air conditioning Economic see illustration "Air conditioning Economic, single parts II" |
|||||||||
| 01 | Condenser air conditioning | 1 | 09/1992 | 64538373004 | $529.62 | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST6,3X45-C-Z2 | 2 | 09/1992 | 07119916848 | $0.54 | Shop at ECS Tuning | |||
| 03 | Spacer sleeve | 2 | 09/1992 | 64538353083 | $4.63 | Shop at ECS Tuning | ||||
| 04 | Grommet | 2 | 09/1992 | 64538353084 | $3.00 | Shop at ECS Tuning | ||||
| 06 | Straight front cross member | 1 | 09/1992 | 41138132178 | $67.89 | Shop at ECS Tuning | ||||
| 07 | Bush | 2 | 09/1992 | 64538368101 | $1.56 | Shop at ECS Tuning | ||||
| 08 | Grommet | 2 | 09/1992 | 64538391408 | $0.81 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST4,8-13-ZNS3 | 2 | 09/1992 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 10 | Hex head screw | ST4,8X22-C-Z2 | 2 | 09/1992 | 07119916944 | $0.25 | Shop at ECS Tuning | |||
| 12 | Compression shroud | 1 | 09/1995 | 64548370967 | $80.37 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4,8-13-ZNS3 | 4 | 09/1992 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 14 | Hex head screw | ST4,8X16-ZNS3 | 4 | 09/1992 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 15 | Pusher fan | 1 | 09/1992 | 64508364093 | $366.18 | Shop at ECS Tuning | ||||
| 16 | C-clip nut | 4 | 09/1992 | 07146955207 | $0.29 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST4,8X19-C-Z2 | 4 | 09/1992 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 19 | Pusher fan | 1 | 09/1995 | 64508364093 | $366.18 | Shop at ECS Tuning | ||||
