Suction fan and mounting parts for BMW 3 Series E36 318i (1998)

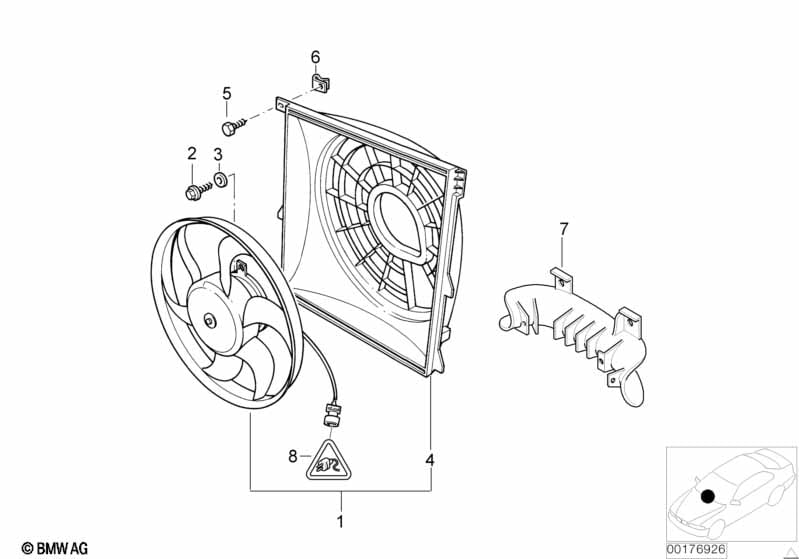

This Suction fan and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Suction fan | 1 | 64508372039 | $366.18 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M5X14 | 3 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Suction frame | 1 | 64548363741 | $72.05 | Shop at ECS Tuning | |||||
| 04 | Suction frame | 1 | 07/1996 | 64548363741 | $72.05 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Air channel bracket | 1 | 64548369127 | $12.85 | Shop at ECS Tuning | |||||
| 08 | Plug housing | 3 POL. | X | 61131378410 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 1,0-2,5 MM² | 1 | 61130007442 | $5.75 | Shop at ECS Tuning | ||||
