Coolant lines for BMW 7 Series G12 740Li (2019)

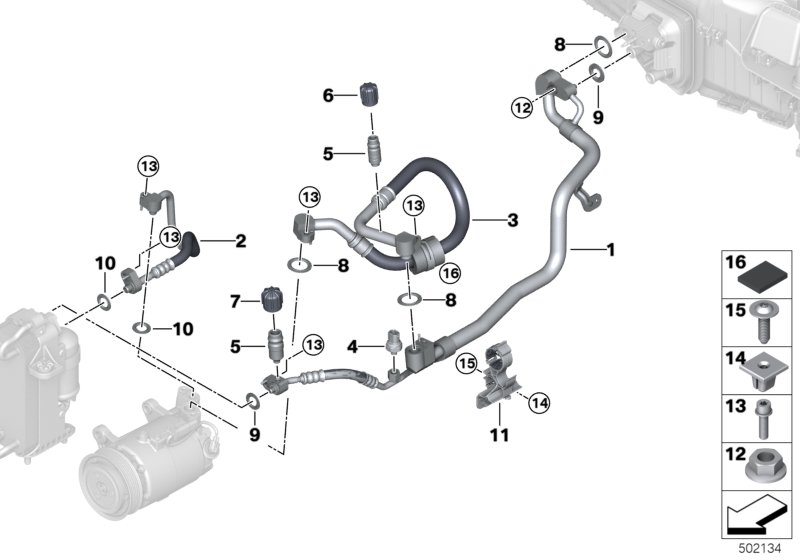

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Expanded rear climate control and Refrigerant R1234yf |
S4NFA=Yes S8R9A=Yes |
|||||||||
| 01 | Refrigerant line, dual line | R1234YF | 1 | 64539361112 | Shop at ECS Tuning | |||||
| For vehicles with Expanded rear climate control and Refrigerant R1234yf |
S4NFA=Yes S8R9A=No |
|||||||||
| 01 | Refrigerant line, dual line | 1 | 64539361111 | Shop at ECS Tuning | ||||||
| For vehicles with Expanded rear climate control and Refrigerant R1234yf |
S4NFA=No S8R9A=No |
|||||||||
| 01 | Refrigerant line, dual line | R134A | 1 | 64539324795 | Shop at ECS Tuning | |||||
| For vehicles with Expanded rear climate control and Refrigerant R1234yf |
S4NFA=No S8R9A=Yes |
|||||||||
| 01 | Refrigerant line, dual line | R1234YF | 1 | 64539324796 | Shop at ECS Tuning | |||||
| 02 | Pressure hose assy compressor-condenser | 1 | 64539309005 | Shop at ECS Tuning | ||||||
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 03 | Suction pipe evaporator-compressor | R134A | 1 | 64539311903 | Shop at ECS Tuning | |||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 03 | Suction pipe evaporator-compressor | R1234YF | 1 | 64539321598 | Shop at ECS Tuning | |||||
| 04 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 05 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 06 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 06 | Sealing cap for suction line | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 07 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 07 | Sealing cap for pressure line | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | D=17MM | 3 | 64539284019 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | D=8MM | 2 | 64539284020 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | D=11MM | 2 | 64539284018 | Shop at ECS Tuning | |||||
| 11 | Combination bracket | 1 | 64539303491 | Shop at ECS Tuning | ||||||
| 12 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 13 | ISA screw | M8X30-U1-8.8 | 5 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 14 | Expanding nut | 1 | 07147348512 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Base | 35X45X6 MM | 1 | 16111182585 | $1.08 | Shop at ECS Tuning | ||||
