Refrigerant lines, underfloor for BMW 5 Series G30 LCI 520e (2022)

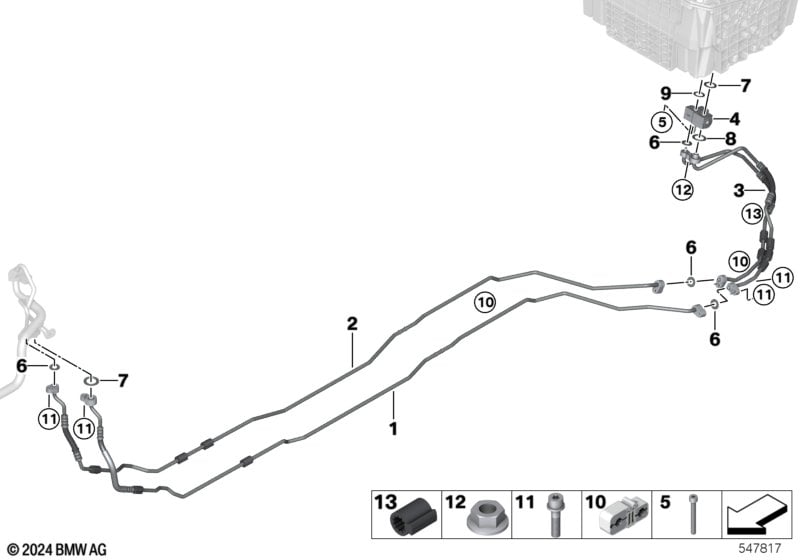

This Refrigerant lines, underfloor technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction line, underfloor | 1 | 64539342892 | Shop at ECS Tuning | ||||||
| 02 | Pressure line, underfloor | 1 | 64539342893 | Shop at ECS Tuning | ||||||
| 03 | Double pipe | 1 | 64539342891 | Shop at ECS Tuning | ||||||
| 04 | Electric expansion valve | 1 | 07/2022 | 64509394286 | Shop at ECS Tuning | |||||
| 05 | Screw | 1 | 64509909280 | Shop at ECS Tuning | ||||||
| 06 | Gasket ring | D=8MM | 4 | 64539284020 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | D=15MM | 2 | 64539284850 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | D=17MM | 1 | 64539284019 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | D=11MM | 1 | 64539284018 | Shop at ECS Tuning | |||||
| 10 | Clip | 4 | 64539199883 | Shop at ECS Tuning | ||||||
| 11 | Isa screw with washer | M6X25-U1 | 4 | 13517632572 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Spacer holder | 1 | 17127553536 | Shop at ECS Tuning |
