Condenser air conditioning for BMW 5 Series G30 530iX (2020)

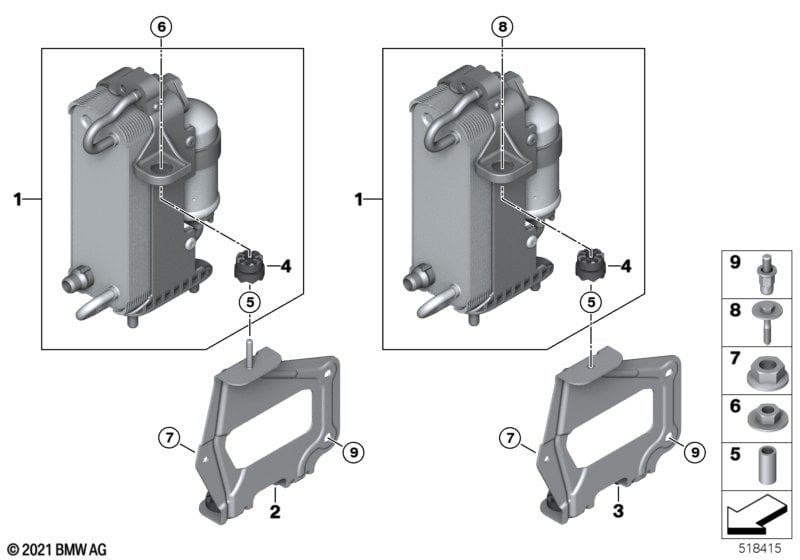

This Condenser air conditioning technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser air conditioning with drier | 1 | 64509891030 | Shop at ECS Tuning | ||||||
| 03 | Bracket condenser | 1 | 64539459461 | Shop at ECS Tuning | ||||||
| 04 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Blind rivet threaded stud | 1 | 07146846903 | Shop at ECS Tuning |
