Cooling water hoses for BMW 5 Series G30 M550iX (2015)

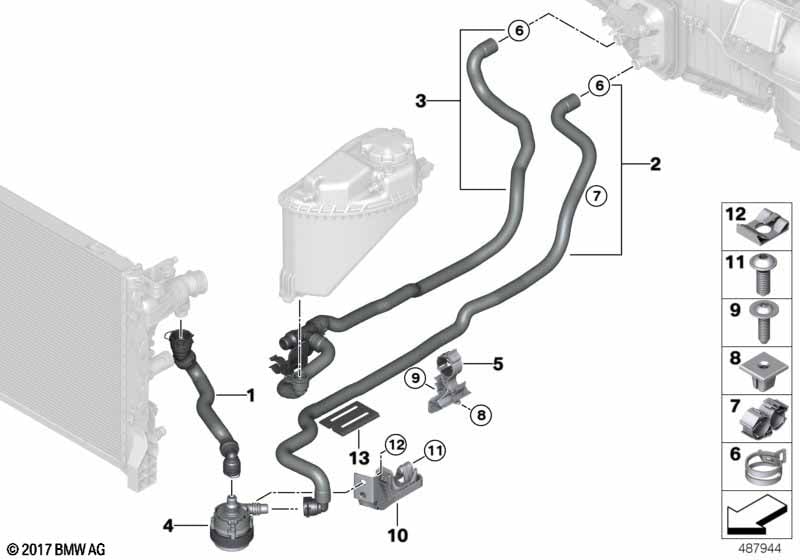

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 M550iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Coolant hose, supply 1 | 1 | 64219299619 | Shop at ECS Tuning | ||||||
| 02 | Coolant hose, supply 2 | 1 | 64219299659 | Shop at ECS Tuning | ||||||
| 03 | Coolant hose, return | 1 | 64219299660 | Shop at ECS Tuning | ||||||
| 04 | Auxiliary water pump | 1 | 07/2021 | 64116834923 | Shop at ECS Tuning | |||||
| 05 | Combination bracket | 1 | 64539303491 | Shop at ECS Tuning | ||||||
| 06 | Spring ring shell | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
| 07 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 1 | 07147348512 | Shop at ECS Tuning | ||||||
| 09 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Bracket for auxiliary water pump | 1 | 64219303628 | Shop at ECS Tuning | ||||||
| 11 | Fillister head screw | M6X16-ZNNIV-SI | 1 | 07149227852 | Shop at ECS Tuning | |||||
| 12 | Circlip | B8 | 1 | 07129904492 | Shop at ECS Tuning | |||||
| 13 | Anti-scuffing | 1 | 64219385206 | Shop at ECS Tuning | ||||||
