Cooling water hoses for BMW 3 Series F30 LCI 320i (2016)

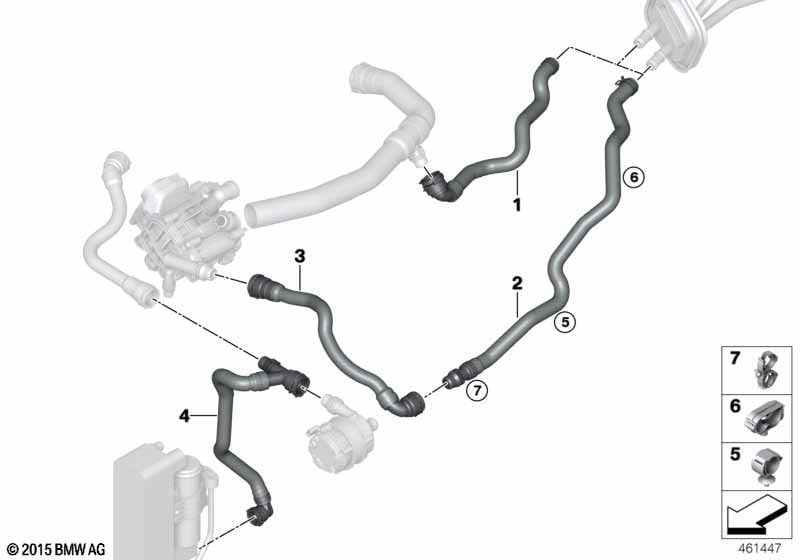

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, heater-engine supply line | 1 | 64219329645 | Shop at ECS Tuning | ||||||
| 02 | Hose f radiator and engine return | 1 | 64219329643 | Shop at ECS Tuning | ||||||
| 03 | Hose f radiator and engine return | 1 | 64219329646 | Shop at ECS Tuning | ||||||
| 04 | Coolant hose, supply | 1 | 64219363338 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | 1 | 11537599270 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | 1 | 64219182947 | $1.80 | Shop at ECS Tuning | |||||
| 07 | Dual clip | D=19-22 | 1 | 17128608773 | Shop at ECS Tuning |
