Coolant lines for BMW 4 Series F33 440iX (2017)

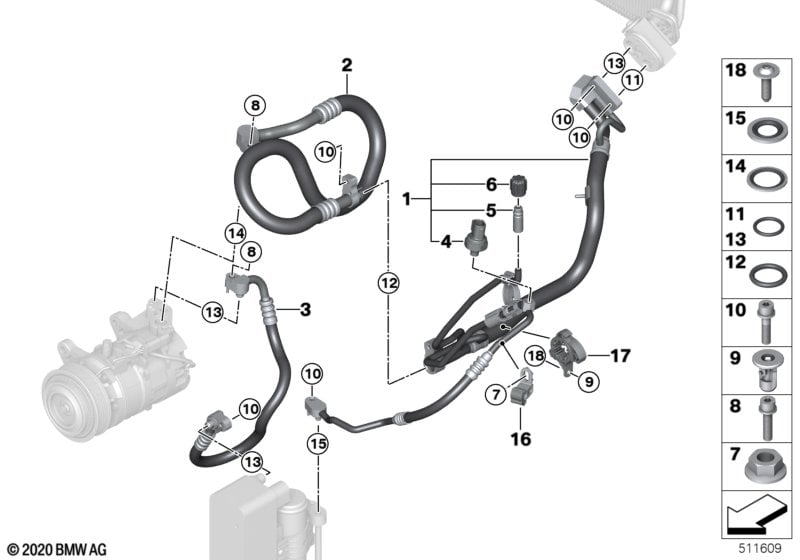

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Refrigerant line, dual line | R134A | 1 | 64539337124 | Shop at ECS Tuning | |||||
| 01 | Refrigerant line, dual line | R1234YF | 1 | 64539337126 | Shop at ECS Tuning | |||||
| 02 | Suction pipe evaporator-compressor | 1 | 64539337136 | Shop at ECS Tuning | ||||||
| 03 | Pressure hose assy compressor-condenser | 1 | 64539337131 | Shop at ECS Tuning | ||||||
| 04 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 05 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 06 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 06 | Sealing cap for suction line | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
| 06 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Sealing cap for pressure line | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M8X30-U1-8.8 | 2 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | L=18.4, DMAX=18 | 1 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 10 | ISA screw | M6X27 10.9 | 5 | 07129909416 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | D=10,8 MM | X | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | D=13,7 MM | X | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | D=11MM | X | 64539284018 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | D=17MM | X | 64539284019 | Shop at ECS Tuning | |||||
| 15 | Gasket ring | D=8MM | X | 64539284020 | Shop at ECS Tuning | |||||
| 16 | Pressure hose bracket | 1 | 64509206051 | Shop at ECS Tuning | ||||||
| 17 | Bracket for air conditioning line | 1 | 07149352228 | Shop at ECS Tuning | ||||||
| 18 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F33 440iX Coolant lines?
- This technical diagram illustrates the Coolant lines within the Heater and Air Conditioning group for the 4 Series F33 440iX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Refrigerant line, dual line (Part #64539337124).
- Which models use the hardware listed in this Coolant lines?
- The hardware and components featured in the Coolant lines are specific to the 4 Series F33 440iX produced during 2017. These technical specifications ensure that parts like the Refrigerant line, dual line (64539337124) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines assembly?
- Each item in the Coolant lines corresponds to the numbered list below the illustration. For the 4 Series F33 440iX, you can identify the Refrigerant line, dual line by locating its position on the schematic, which then links to the official BMW part number 64539337124 for the Heater and Air Conditioning section.
