Air duct for BMW MINI Clubman F54 One (2019)

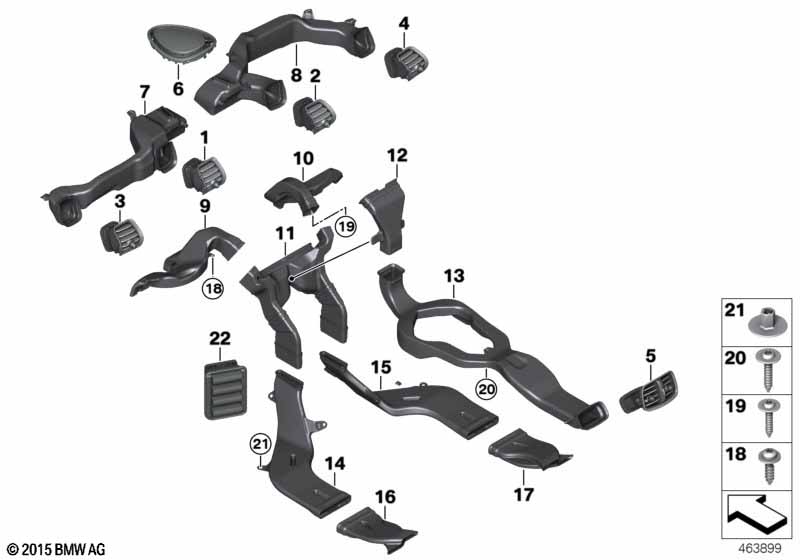

This Air duct technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fresh air grille center left | 1 | 64229305681 | Shop at ECS Tuning | ||||||
| 01 | Fresh air grille center left | CHROM | 1 | 64229340451 | Shop at ECS Tuning | |||||
| 02 | Fresh air grille center right | 1 | 64229305682 | Shop at ECS Tuning | ||||||
| 02 | Fresh air grille center right | CHROM | 1 | 64229340452 | Shop at ECS Tuning | |||||
| 03 | Fresh air grille, left | 1 | 64229305679 | Shop at ECS Tuning | ||||||
| 03 | Fresh air grille, left | CHROM | 1 | 64229340459 | Shop at ECS Tuning | |||||
| 04 | Fresh air grille, right | 1 | 64229305680 | Shop at ECS Tuning | ||||||
| 04 | Fresh air grille, right | CHROM | 1 | 64229340460 | Shop at ECS Tuning | |||||
| 05 | Fresh air grille rear room | 1 | 64229306133 | Shop at ECS Tuning | ||||||
| 05 | Fresh air grille rear room | CHROM | 1 | 64229332823 | Shop at ECS Tuning | |||||
| 06 | Fresh air grille, indirect | 1 | 64229262802 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 06 | Fresh air grille, indirect | HARMAN KARDON | 1 | 64229262803 | Shop at ECS Tuning | |||||
| 07 | Cold air duct left | 1 | 64229305675 | Shop at ECS Tuning | ||||||
| 08 | Cold air duct right | 1 | 64229305676 | Shop at ECS Tuning | ||||||
| 09 | Left floor heater duct | 1 | 51459349745 | Shop at ECS Tuning | ||||||
| 10 | Right floor heater duct | 1 | 51459349747 | Shop at ECS Tuning | ||||||
| 11 | Air distributor, footwell | 1 | 64229349750 | Shop at ECS Tuning | ||||||
| 12 | Adapter for rear ventilation duct | 1 | 64229263409 | Shop at ECS Tuning | ||||||
| 13 | Rear ventilation duct | 1 | 64229306132 | Shop at ECS Tuning | ||||||
| 14 | Heater duct, rear, left front | 1 | 51477307881 | Shop at ECS Tuning | ||||||
| 15 | Heater duct, rear, right front | 1 | 51477307882 | Shop at ECS Tuning | ||||||
| 16 | Heater duct, rear, left rear | 1 | 51477298807 | Shop at ECS Tuning | ||||||
| 17 | Heater duct, rear, right rear | 1 | 51477298808 | Shop at ECS Tuning | ||||||
| 18 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 2 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| 19 | Fillister head screw | DELTA PT4X16 | 1 | 07149197038 | Shop at ECS Tuning | |||||
| 20 | Oval-head screw with washer | DELTA PT4X20 | 1 | 07149185673 | Shop at ECS Tuning | |||||
| 21 | Clip nut | 5X15 D=30 SW10 | 4 | 07147139081 | $0.20 | Shop at ECS Tuning | ||||
| 22 | Rear ventilation with absorber | 2 | 03/2020 | 64229315932 | Shop at ECS Tuning | |||||
| 22 | Rear ventilation without absorber | 2 | 64229201647 | Shop at ECS Tuning | ||||||
