Cooling water hoses for BMW 1 Series F40 128ti (2024)

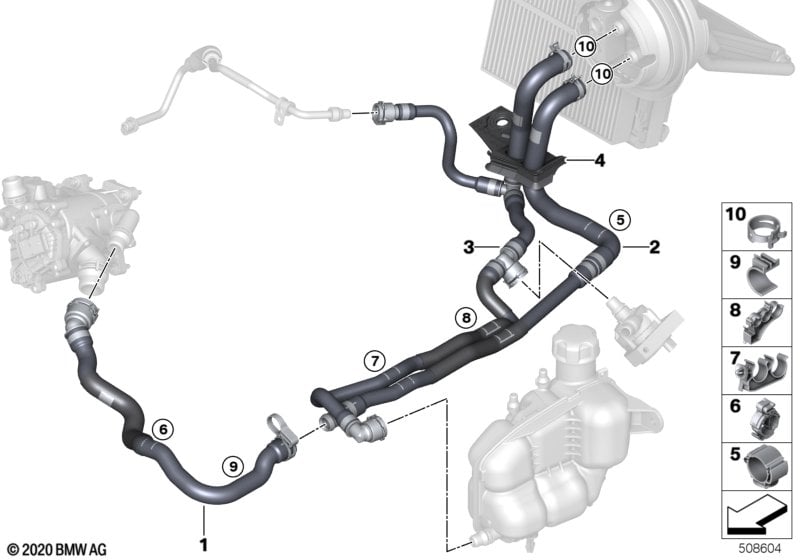

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant hose, supply 1 | 1 | 64216832801 | Shop at ECS Tuning | ||||||
| 02 | Coolant hose, supply 2 | 1 | 64216832803 | Shop at ECS Tuning | ||||||
| 03 | Coolant hose, return | 1 | 64219873682 | Shop at ECS Tuning | ||||||
| 04 | Grommet | 1 | 64218838385 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | D=23MM | 1 | 64219222656 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 1 | 17123424326 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp, double | 1 | 64216832805 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp, triple | 1 | 64216832807 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | 1 | 64216832806 | Shop at ECS Tuning | ||||||
| 10 | Spring ring shell | D=25MM | 2 | 64213405930 | Shop at ECS Tuning |
