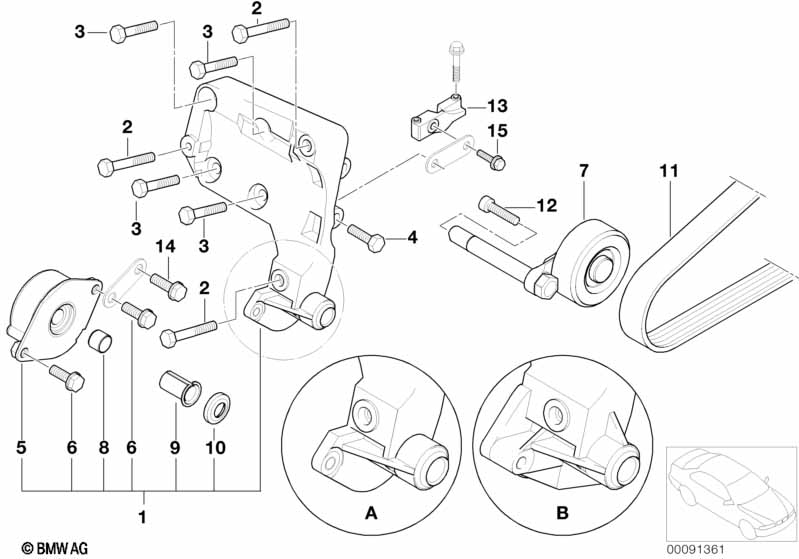

Air cond.compressor-supporting bracket for BMW 5 Series E39 525d (2003)
This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Climate compressor supporting bracket | 1 | 10/2000 | 64557786194 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X90-U1 | 3 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X25-8.8-ZNNIV | 4 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X25-8.8-ZNNIV | 2 | 09/2004 | 07119905394 | $0.64 | Shop at ECS Tuning | |||
| 05 | Belt tensioner | 1 | 09/1998 | 64557786076 | $49.53 | Shop at ECS Tuning | ||||
| 06 | Torx screw with collar | M7X38 | 2 | 10/2000 | 11517789351 | Shop at ECS Tuning | ||||
| 07 | Tensioning lever | 1 | 10/2000 | 64557788684 | $56.87 | Shop at ECS Tuning | ||||
| 08 | Bushing | 1 | 10/2000 | 64557788090 | Shop at ECS Tuning | |||||
| 09 | Bushing | 1 | 64557788089 | Shop at ECS Tuning | ||||||
| 10 | sealing | 1 | 11282247187 | $1.18 | Shop at ECS Tuning | |||||
| 11 | Ribbed v-belt | 5 PK X 810 | 1 | 64558593211 | Shop at ECS Tuning | |||||
| 12 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Support f air cond.compress.supp.bracket | 1 | 64557785065 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt with washer | M8X22 | 1 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M8X25-8.8-ZNNIV | 2 | 07119905394 | $0.64 | Shop at ECS Tuning |
