Air channel for BMW 8 Series G14 Convertible 840dX (2025)

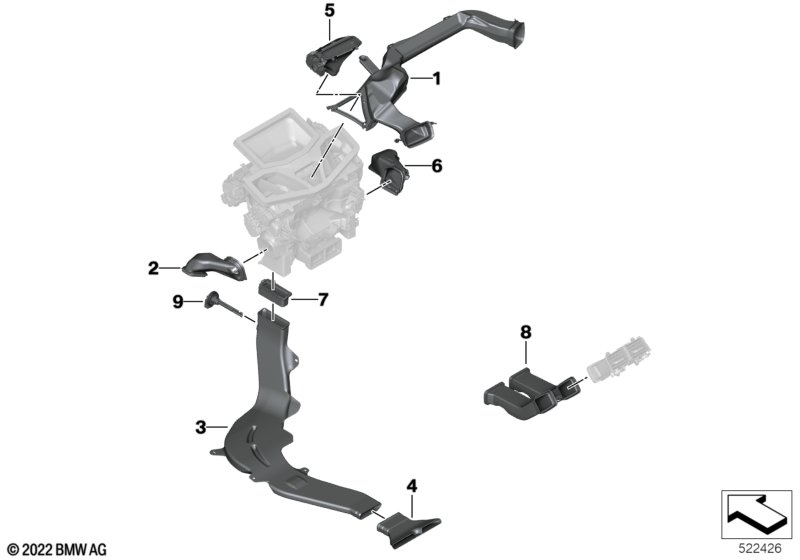

This Air channel technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cold-air duct, passenger's side | 1 | 61229396272 | Shop at ECS Tuning | ||||||
| 01 | Cold-air duct, driver's side | 1 | 61229396273 | Shop at ECS Tuning | ||||||
| 02 | Air duct, left footwell | 1 | 64229299475 | Shop at ECS Tuning | ||||||
| 02 | Air duct, right footwell | 1 | 64229299476 | Shop at ECS Tuning | ||||||
| 03 | Air duct, rear compartment, front left | 1 | 64227435729 | Shop at ECS Tuning | ||||||
| 03 | Air duct, rear compartment, front right | 1 | 64227435730 | Shop at ECS Tuning | ||||||
| 04 | Air duct, rear compartment, rear left | 1 | 64227435731 | Shop at ECS Tuning | ||||||
| 04 | Air duct, rear compartment, rear right | 1 | 64227435732 | Shop at ECS Tuning | ||||||
| 05 | Air duct for indirect ventilation | 1 | 64229396259 | Shop at ECS Tuning | ||||||
| 07 | Adapter, air duct, rear section, left | 1 | 64116825813 | Shop at ECS Tuning | ||||||
| 07 | Adapter, air duct, rear section, right | 1 | 64116825814 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G14 Convertible 840dX Air channel?
- This technical diagram illustrates the Air channel within the Heater and Air Conditioning group for the 8 Series G14 Convertible 840dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cold-air duct, passenger's side (Part #61229396272).
- Which models use the hardware listed in this Air channel?
- The hardware and components featured in the Air channel are specific to the 8 Series G14 Convertible 840dX produced during 2025. These technical specifications ensure that parts like the Cold-air duct, passenger's side (61229396272) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air channel assembly?
- Each item in the Air channel corresponds to the numbered list below the illustration. For the 8 Series G14 Convertible 840dX, you can identify the Cold-air duct, passenger's side by locating its position on the schematic, which then links to the official BMW part number 61229396272 for the Heater and Air Conditioning section.
