Cooling water hoses for BMW 4 Series G22 Coupé 420dX (2023)

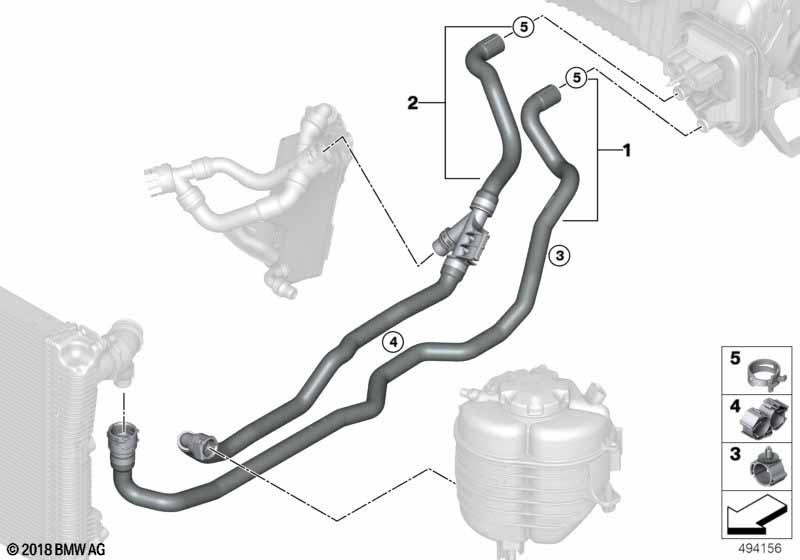

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Energy recovery system and Auxiliary heating |
S1CEA=No S536A=No |
||||||||
| 01 | Coolant hose, supply | 1 | 64219398954 | Shop at ECS Tuning | ||||||
| 02 | Coolant hose, return | 1 | 64219398959 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp | D=23MM | 1 | 17127619358 | Shop at ECS Tuning | |||||
| 04 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 05 | Spring ring shell | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 420dX Cooling water hoses?
- This technical diagram illustrates the Cooling water hoses within the Heater and Air Conditioning group for the 4 Series G22 Coupé 420dX produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose, supply (Part #64219398954).
- Which models use the hardware listed in this Cooling water hoses?
- The hardware and components featured in the Cooling water hoses are specific to the 4 Series G22 Coupé 420dX produced during 2023. These technical specifications ensure that parts like the Coolant hose, supply (64219398954) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling water hoses assembly?
- Each item in the Cooling water hoses corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420dX, you can identify the Coolant hose, supply by locating its position on the schematic, which then links to the official BMW part number 64219398954 for the Heater and Air Conditioning section.
