Fuel supply/pump/tubing for BMW 3 Series G20 Sedan LCI M340dX (2025)

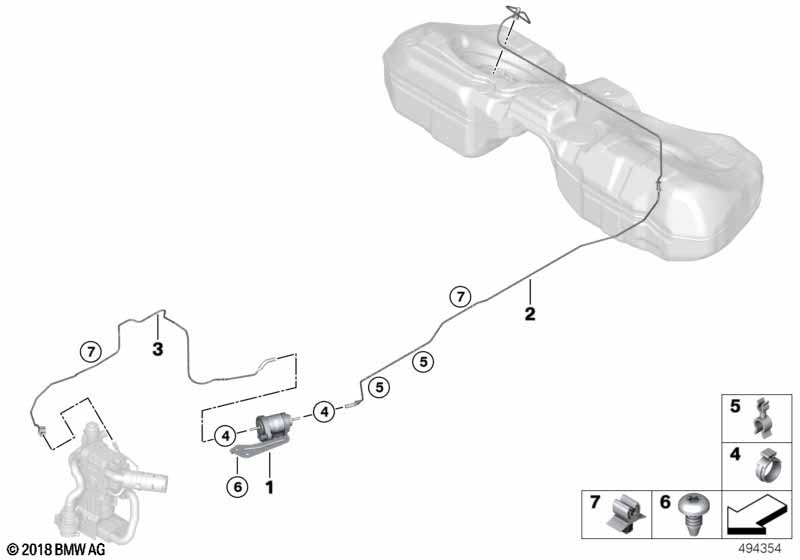

This Fuel supply/pump/tubing technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Fuel pump | 1 | 64126807355 | Shop at ECS Tuning | ||||||
| 02 | Fuel suction line | 1 | 64129389094 | Shop at ECS Tuning | ||||||
| 03 | Fuel pressure line | 1 | 64129389093 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | 9,4 - 11,9MM | 4 | 16141183085 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 2 | 11667786494 | Shop at ECS Tuning | ||||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 07 | Wire clip, single | 5 | 34326757257 | $1.08 | Shop at ECS Tuning | |||||
