Coolant lines for BMW 3 Series G21 Touring 330e (2022)

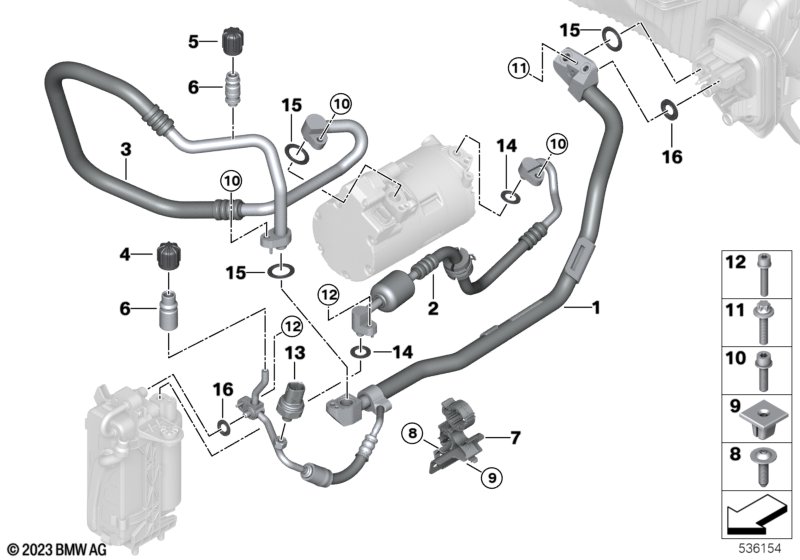

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 01 | Refrigerant line, dual line | R134A | 1 | 64539395464 | Shop at ECS Tuning | |||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 01 | Refrigerant line, dual line | R1234YF | 1 | 64539395463 | Shop at ECS Tuning | |||||
| Servicelösung: SEL-SEL-P-64- 20000793151902-01 |
||||||||||
| 02 | Pressure hose assy compressor-condenser | 1 | 64539395475 | Shop at ECS Tuning | ||||||
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 03 | Suction line, dual-pipe compressor | R134A | 1 | 64539395456 | Shop at ECS Tuning | |||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 03 | Suction line, dual-pipe compressor | R1234YF | 1 | 64539395455 | Shop at ECS Tuning | |||||
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 04 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 04 | Sealing cap for pressure line | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
| For vehicles with Refrigerant R1234yf |
S8R9A=No |
|||||||||
| 05 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
|||||||||
| 05 | Sealing cap for suction line | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
| 06 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 07 | Combination bracket | 1 | 64536806376 | Shop at ECS Tuning | ||||||
| 08 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | 2 | 07147348512 | Shop at ECS Tuning | ||||||
| 10 | ISA screw | M8X30-U1-8.8 | 3 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 11 | Star-socket screw | BM6 X 25 | 1 | 07119908428 | Shop at ECS Tuning | |||||
| 12 | ISA screw | M6X30-10.9 | 2 | 07129905795 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 14 | Gasket ring | D=11MM | 2 | 64539284018 | Shop at ECS Tuning | |||||
| 15 | Gasket ring | D=17MM | 3 | 64539284019 | Shop at ECS Tuning | |||||
| 16 | Gasket ring | D=8MM | 2 | 64539284020 | Shop at ECS Tuning | |||||
