Refrigerant lines, underfloor for BMW 3 Series G21 Touring 330eX (2022)

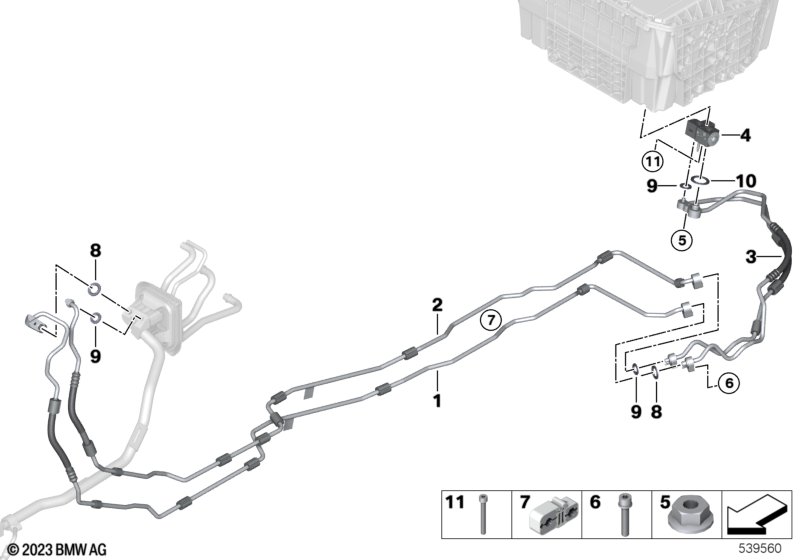

This Refrigerant lines, underfloor technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction line, underfloor | 1 | 64539395454 | Shop at ECS Tuning | ||||||
| 02 | Pressure line, underfloor | 1 | 64539395474 | Shop at ECS Tuning | ||||||
| 03 | Double pipe | 1 | 64539395473 | Shop at ECS Tuning | ||||||
| 04 | Electric expansion valve | 1 | 07/2022 | 64509394286 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6-10-ZNNIV SI | 1 | 07129907467 | Shop at ECS Tuning | |||||
| 06 | ISA screw | M6X30-10.9 | 2 | 07129905795 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Clip | 4 | 64539199883 | Shop at ECS Tuning | ||||||
| 08 | Gasket ring | D=11MM | 3 | 64539284018 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | D=8MM | 2 | 64539284020 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | D=17MM | 2 | 64539284019 | Shop at ECS Tuning | |||||
| 11 | Screw | 2 | 64509909280 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330eX Refrigerant lines, underfloor?
- This technical diagram illustrates the Refrigerant lines, underfloor within the Heater and Air Conditioning group for the 3 Series G21 Touring 330eX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Suction line, underfloor (Part #64539395454).
- Which models use the hardware listed in this Refrigerant lines, underfloor?
- The hardware and components featured in the Refrigerant lines, underfloor are specific to the 3 Series G21 Touring 330eX produced during 2022. These technical specifications ensure that parts like the Suction line, underfloor (64539395454) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Refrigerant lines, underfloor assembly?
- Each item in the Refrigerant lines, underfloor corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330eX, you can identify the Suction line, underfloor by locating its position on the schematic, which then links to the official BMW part number 64539395454 for the Heater and Air Conditioning section.
