Cooling water hoses for BMW 3 Series G20 Sedan 320e (2022)

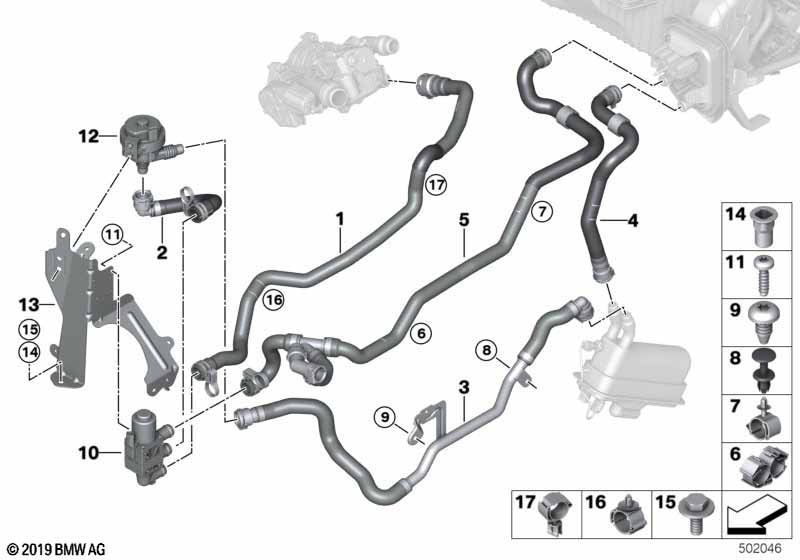

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant hose, supply 1 | 1 | 64219398956 | Shop at ECS Tuning | ||||||
| 02 | Coolant hose, supply 2 | 1 | 64219398957 | Shop at ECS Tuning | ||||||
| 03 | Coolant hose radiator feed 3 | 1 | 64219875345 | Shop at ECS Tuning | ||||||
| 04 | Coolant hose radiator feed 4 | 1 | 64219398958 | Shop at ECS Tuning | ||||||
| 05 | Coolant hose, return | 1 | 64219398962 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 1 | 64216827207 | Shop at ECS Tuning | ||||||
| 08 | Expanding rivet | 1 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| 10 | Changeover valve | 1 | 64119890553 | Shop at ECS Tuning | ||||||
| 11 | Oval head screw | 35X12 | 4 | 11538570926 | Shop at ECS Tuning | |||||
| 12 | Auxiliary water pump | LIN | 1 | 07/2021 | 64218840614 | Shop at ECS Tuning | ||||
| 13 | Bracket for auxiliary water pump | 1 | 64216820736 | Shop at ECS Tuning | ||||||
| 14 | Blind rivet nut, flat headed | M6 | 3 | 07147311614 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X16-U2-ZNS3 | 3 | 07119902913 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | D=23MM | 2 | 17127619358 | Shop at ECS Tuning | |||||
| 17 | Clip | D=22-24 | 1 | 17128632053 | Shop at ECS Tuning |
