Cooling water hoses for BMW MINI Countryman F60 Cooper (2020)

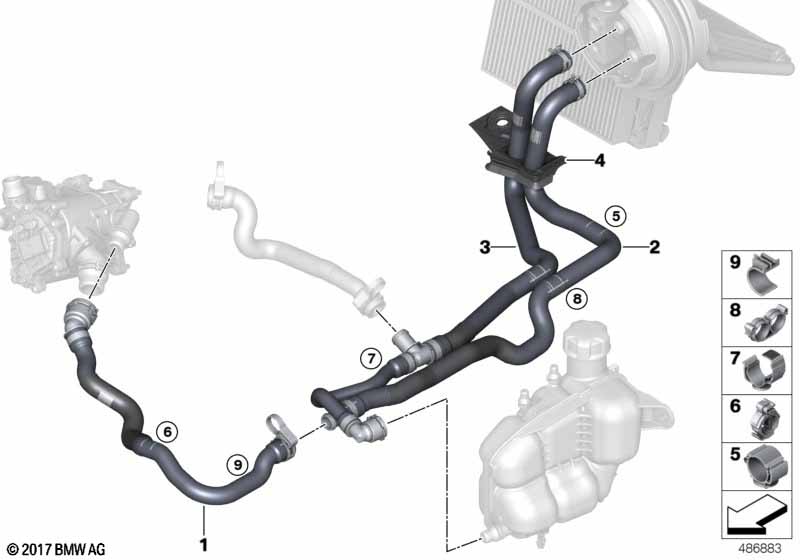

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU6 rde II or Hot-climate version |
S1DFA=No S823A=No |
||||||||
| 01 | Coolant hose, supply 1 | 1 | 64216832801 | Shop at ECS Tuning | ||||||
| 02 | Coolant hose, supply 2 | 1 | 64216832802 | Shop at ECS Tuning | ||||||
| 03 | Coolant hose, return | 1 | 64219250564 | Shop at ECS Tuning | ||||||
| 04 | Rubber grommet | 1 | 64219315941 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | D=23MM | 2 | 64219222656 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 1 | 17123424326 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | D=27MM | 1 | 64219260689 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 1 | 64216951110 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | 1 | 64216832806 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper Cooling water hoses?
- This technical diagram illustrates the Cooling water hoses within the Heater and Air Conditioning group for the MINI Countryman F60 Cooper produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose, supply 1 (Part #64216832801).
- Which models use the hardware listed in this Cooling water hoses?
- The hardware and components featured in the Cooling water hoses are specific to the MINI Countryman F60 Cooper produced during 2020. These technical specifications ensure that parts like the Coolant hose, supply 1 (64216832801) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling water hoses assembly?
- Each item in the Cooling water hoses corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Coolant hose, supply 1 by locating its position on the schematic, which then links to the official BMW part number 64216832801 for the Heater and Air Conditioning section.
