Condenser air conditioning for BMW 4 Series G82 M4 Coupé M4 (2024)

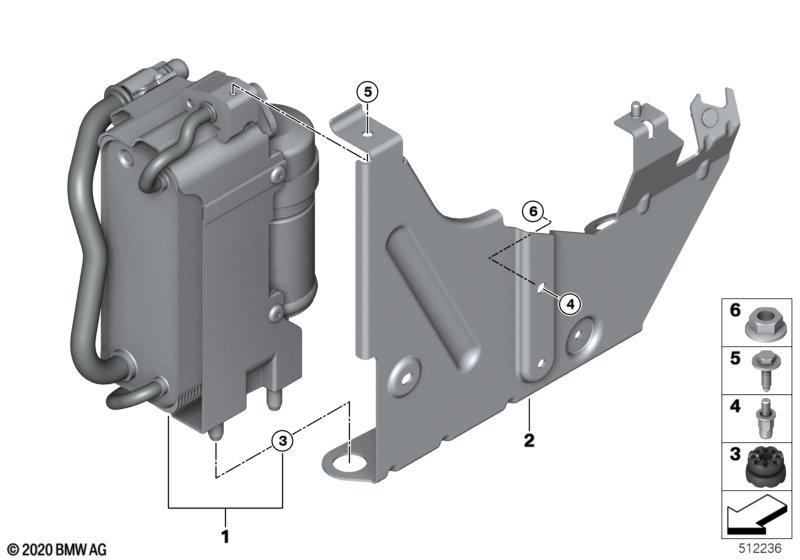

This Condenser air conditioning technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser air conditioning with drier | 1 | 64508088925 | Shop at ECS Tuning | ||||||
| 02 | Bracket condenser | 1 | 64508088926 | Shop at ECS Tuning | ||||||
| 03 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 04 | Blind rivet threaded stud | 3 | 07146846903 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M6X20-8.8 | 1 | 07119907898 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G82 M4 Coupé M4 Condenser air conditioning?
- This technical diagram illustrates the Condenser air conditioning within the Heater and Air Conditioning group for the 4 Series G82 M4 Coupé M4 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Condenser air conditioning with drier (Part #64508088925).
- Which models use the hardware listed in this Condenser air conditioning?
- The hardware and components featured in the Condenser air conditioning are specific to the 4 Series G82 M4 Coupé M4 produced during 2024. These technical specifications ensure that parts like the Condenser air conditioning with drier (64508088925) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Condenser air conditioning assembly?
- Each item in the Condenser air conditioning corresponds to the numbered list below the illustration. For the 4 Series G82 M4 Coupé M4, you can identify the Condenser air conditioning with drier by locating its position on the schematic, which then links to the official BMW part number 64508088925 for the Heater and Air Conditioning section.
