Water valve/Water hose IHKA High for BMW 6 Series E64 M6 (2010)

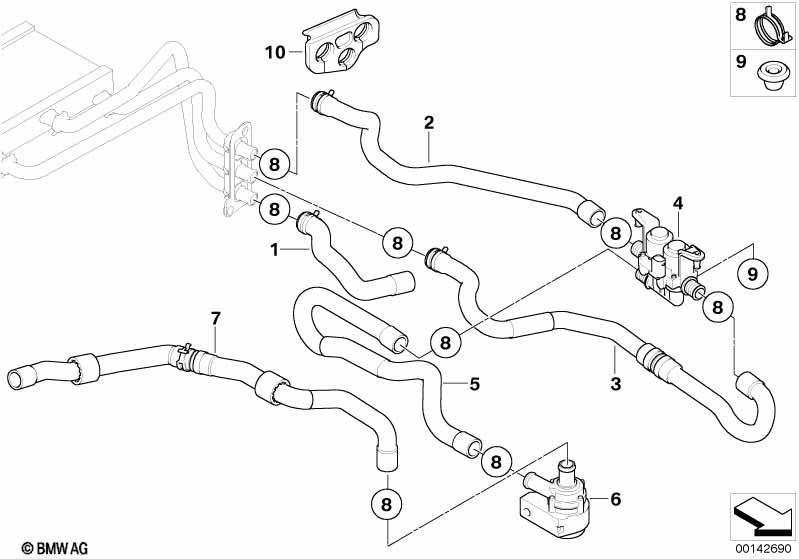

This Water valve/Water hose IHKA High technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f radiator and engine return | 1 | 64216927809 | $13.30 | Shop at ECS Tuning | |||||
| 02 | Hose f water valve and radiator | 1 | 64216910757 | $14.84 | Shop at ECS Tuning | |||||
| 03 | Hose f water valve and radiator | 1 | 64216927808 | $36.82 | Shop at ECS Tuning | |||||
| 04 | Water valve | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 05 | Hose f additional water pump/water valve | 1 | 64216930549 | $24.54 | Shop at ECS Tuning | |||||
| 06 | Additional water pump | 1 | 64116930550 | $163.38 | Shop at ECS Tuning | |||||
| 07 | Hose auxiliary water pump, engine flow | 1 | 64216927810 | $57.05 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | D=27MM | 10 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 09 | Grommet | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 10 | Grommet | 1 | 64216915171 | $7.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 M6 Water valve/Water hose IHKA High?
- This technical diagram illustrates the Water valve/Water hose IHKA High within the Heater and Air Conditioning group for the 6 Series E64 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Hose f radiator and engine return (Part #64216927809).
- Which models use the hardware listed in this Water valve/Water hose IHKA High?
- The hardware and components featured in the Water valve/Water hose IHKA High are specific to the 6 Series E64 M6 produced during 2010. These technical specifications ensure that parts like the Hose f radiator and engine return (64216927809) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water valve/Water hose IHKA High assembly?
- Each item in the Water valve/Water hose IHKA High corresponds to the numbered list below the illustration. For the 6 Series E64 M6, you can identify the Hose f radiator and engine return by locating its position on the schematic, which then links to the official BMW part number 64216927809 for the Heater and Air Conditioning section.
