Coolant lines for BMW 6 Series E63 LCI 650i (2010)

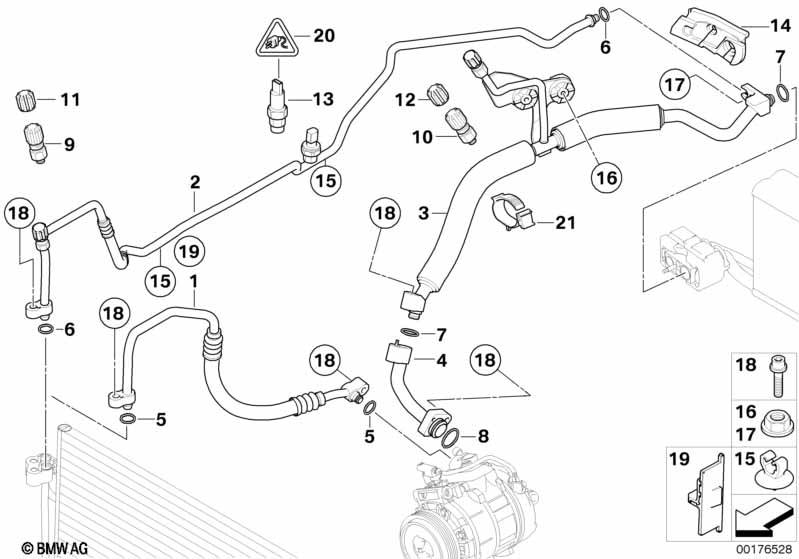

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64509181834 | $105.37 | Shop at ECS Tuning | |||||
| with filler valve | ||||||||||
| 02 | Pressure hose,condenser,evaporator | 1 | 64539155346 | $162.30 | Shop at ECS Tuning | |||||
| 03 | Suction pipe | 1 | 64509181828 | $165.68 | Shop at ECS Tuning | |||||
| 04 | Adapter for suction pipe | 1 | 64536914574 | $46.12 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=13,7 MM | 2 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 23X2,5 | 1 | 64506909894 | $0.98 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO PRESSURE HOSE ASSY |
||||||||||
| 09 | Valve insert, pressure line | R134A | 1 | 64509177577 | $10.87 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SUCTION PIPE |
||||||||||
| 10 | Valve insert, suction line | R134A | 1 | 64509177579 | $10.87 | Shop at ECS Tuning | ||||
| 11 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 12 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 13 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 14 | Grommet, air cond. lines | 1 | 64536915174 | $7.35 | Shop at ECS Tuning | |||||
| 15 | Pipe clip | D= 10MM | 2 | 64536919700 | $0.72 | Shop at ECS Tuning | ||||
| 16 | Hex nut | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Clip | 1 | 17117547413 | $3.02 | Shop at ECS Tuning | |||||
| 20 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0,5-1,5 MM² | 1 | 61138353706 | $0.27 | Shop at ECS Tuning | ||||
| 21 | Hose clamp | 1 | 64509194765 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 LCI 650i Coolant lines?
- This technical diagram illustrates the Coolant lines within the Heater and Air Conditioning group for the 6 Series E63 LCI 650i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Pressure hose assy compressor-condenser (Part #64509181834).
- Which models use the hardware listed in this Coolant lines?
- The hardware and components featured in the Coolant lines are specific to the 6 Series E63 LCI 650i produced during 2010. These technical specifications ensure that parts like the Pressure hose assy compressor-condenser (64509181834) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines assembly?
- Each item in the Coolant lines corresponds to the numbered list below the illustration. For the 6 Series E63 LCI 650i, you can identify the Pressure hose assy compressor-condenser by locating its position on the schematic, which then links to the official BMW part number 64509181834 for the Heater and Air Conditioning section.
